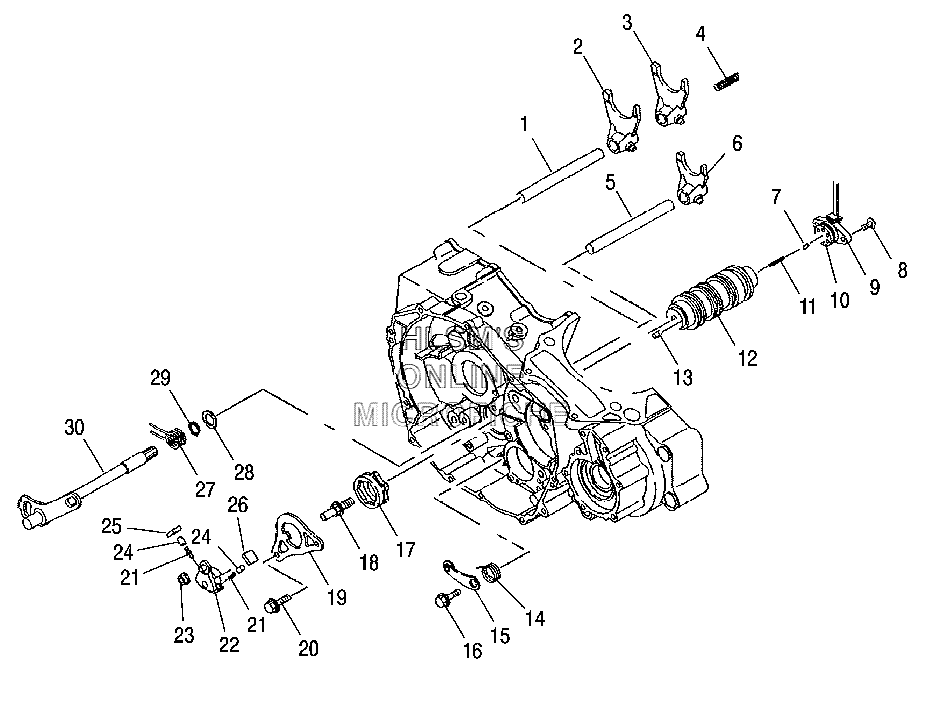

SHIFT CAM W/ FORK для Polaris Predator 500 TLD (A06GJ50AA) - 2006 года выпуска
-
№АртикулНазвание
-
13089650 SHAFT, FORKSHAFT, FORK
-
23089645 FORK, SHIFT (RIGHT)FORK, SHIFT (RIGHT)
-
33089644 FORK, SHIFT (LEFT)FORK, SHIFT (LEFT)
-
43089662 SPRING, FORK SHAFTSPRING, FORK SHAFT
-
53089650 SHAFT, FORKSHAFT, FORK
-
63089643 FORK, SHIFT, MAINFORK, SHIFT, MAIN
-
73088115 POINT, NEUTRALPOINT, NEUTRAL
-
83083783 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
93089647 SWITCH POSITION ASSY.SWITCH POSITION ASSY.
-
103088123 O-RINGO-RING
-
113088116 SPRING, POINTSPRING, POINT
-
123089787 SHIFT DRUM COMP.SHIFT DRUM COMP.
-
133088191 PIN, DOWELPIN, DOWEL
-
143089641 SPRING, STOPPERSPRING, STOPPER
-
153089640 ARM, STOPPER, ASSYARM, STOPPER, ASSY
-
163088117 BOLT, STOPPERBOLT, STOPPER
-
173089639 CAM, SHIFTCAM, SHIFT
-
183089642 PIN, SHIFTERPIN, SHIFTER
-
193089660 PLATE, GUIDEPLATE, GUIDE
-
203089661 BOLT, FLANGEBOLT, FLANGE
-
213089659 SPRING, PLUNGERSPRING, PLUNGER
-
223089654 SHIFTER, DRUMSHIFTER, DRUM
-
233089655 COLLAR, SHIFTERCOLLAR, SHIFTER
-
243089658 PLUNGER, PAWLPLUNGER, PAWL
-
253089656 PAWL A, RATCHERPAWL A, RATCHER
-
263089657 PAWL B, RATCHERPAWL B, RATCHER
-
273089649 SPRING, RETURNSPRING, RETURN
-
283089664 WASHERWASHER
-
293089663 RING, SNAPRING, SNAP
-
303089648 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
