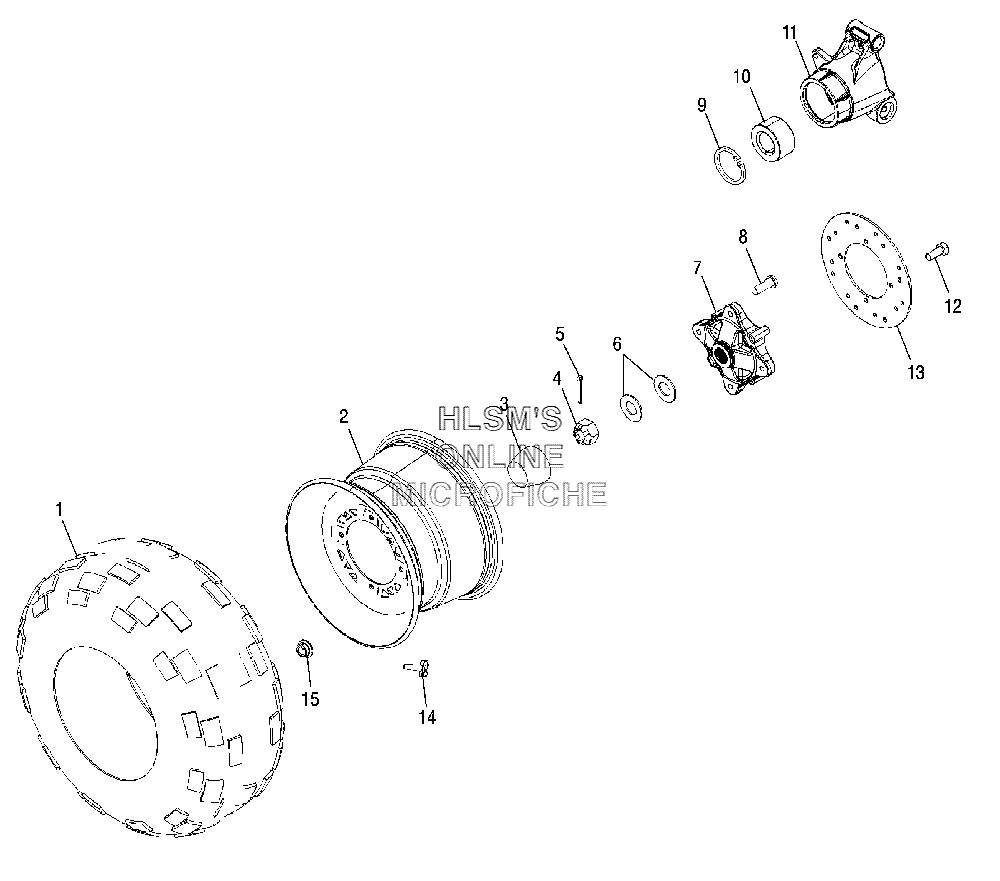

WHEEL - REAR W/ HUB для Polaris Sportsman 450 HD (A06MH46AC) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
15412451 TIRE-REAR (25X11-12)TIRE-REAR (25X11-12)
-
21520457-067 RIM, REAR (12X8) (BLACK)RIM, REAR (12X8) (BLACK)
-
35411164 COVER, DUST, HUBCOVER, DUST, HUB
-
47543005 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75134311 HUB-WHEEL, REARHUB-WHEEL, REAR
-
87515513 STUDSTUD
-
97710440 RING, RETAININGRING, RETAINING
-
103585502 BEARINGBEARING
-
115134206 CARRIER-BEARING, WHEELCARRIER-BEARING, WHEEL
-
127512325 BOLTBOLT
-
135244635 DISC, BRAKE (REAR)DISC, BRAKE (REAR)
-
141525017 VALVE, RIMVALVE, RIM
-
157547237 NUT-FLANGE, TWO PIECENUT-FLANGE, TWO PIECE
