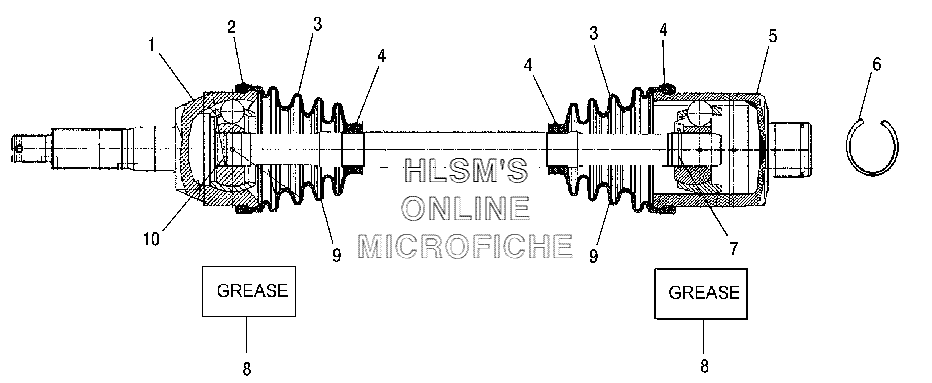

DRIVESHAFT - REAR для Polaris Sportsman 450 HD (A06MH46AF) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
11590415 CV-JOINTCV-JOINT
-
21350044 CLAMP-LARGECLAMP-LARGE
-
31332433 BOOT (WHEEL SIDE)BOOT (WHEEL SIDE)
-
41350043 CLAMP-SMALLCLAMP-SMALL
-
51590281 PLUNGING JOINT (REAR) (INCL. 6, 7)PLUNGING JOINT (REAR) (INCL. 6, 7)
-
61350042 SPRING-RINGSPRING-RING
-
77710505 RING, RETAININGRING, RETAINING
-
81350047 GREASEGREASE
-
92203108 BOOT KIT (INCL. CLAMPS, GREASE)BOOT KIT (INCL. CLAMPS, GREASE)
-
107710576 RING-RETAINING, SHAFTRING-RETAINING, SHAFT
-
-1332421 DRIVE SHAFT ASSY (REAR) (INCL. 1-6)DRIVE SHAFT ASSY (REAR) (INCL. 1-6)
