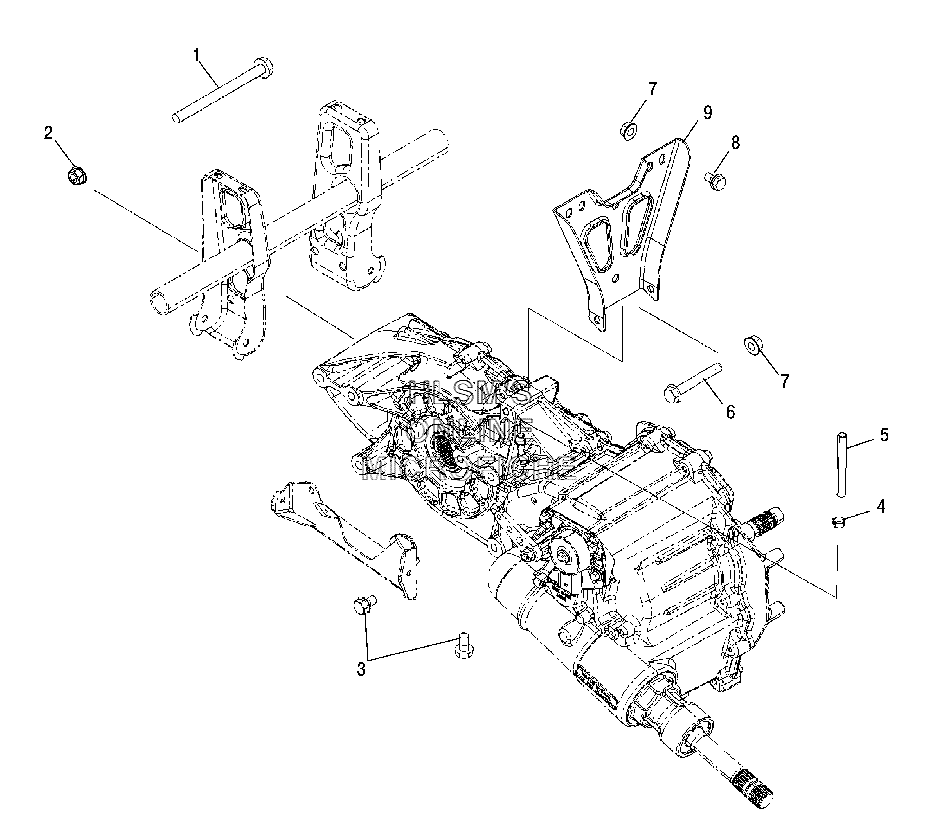

MOUNTING - TRANSMISSION для Polaris Sportsman 500 HO (A06MH50AF) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
17518365 BOLTBOLT
-
27547180 NUT-FLANGEDNUT-FLANGED
-
37518364 BOLTBOLT
-
47080307 CLAMP, HOSECLAMP, HOSE
-
58450003-1525 LINE, FUEL (1/4 ID 1525 CM.)LINE, FUEL (1/4 ID 1525 CM.)
-
67515382 BOLTBOLT
-
77542343 NUT, FLANGENUT, FLANGE
-
87515398 SCREWSCREW
-
95221624-067 SUPPORT-TRANSMISSION (UPPER/BLACK)SUPPORT-TRANSMISSION (UPPER/BLACK)
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT BRAKE LINES
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR - LOWER
- CARBURETOR - MOUNTING W/ FUEL PUMP/LINES
- CARBURETOR - UPPER
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL - LIGHTING SYSTEMS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - INTERNAL COMPONENTS
- HANDLEBAR - CONTROL ASSY.
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HEADLIGHT POD W/ SPEEDOMETER
- HOUSING - FRONT
- MAGNETO
- MOUNTING - ENGINE
- • MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- PROP SHAFT - FRONT
- RACK MOUNTING - REAR
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - FRONT W/ BUMPER MOUNTING
- STORAGE BOX - REAR
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ HUB
