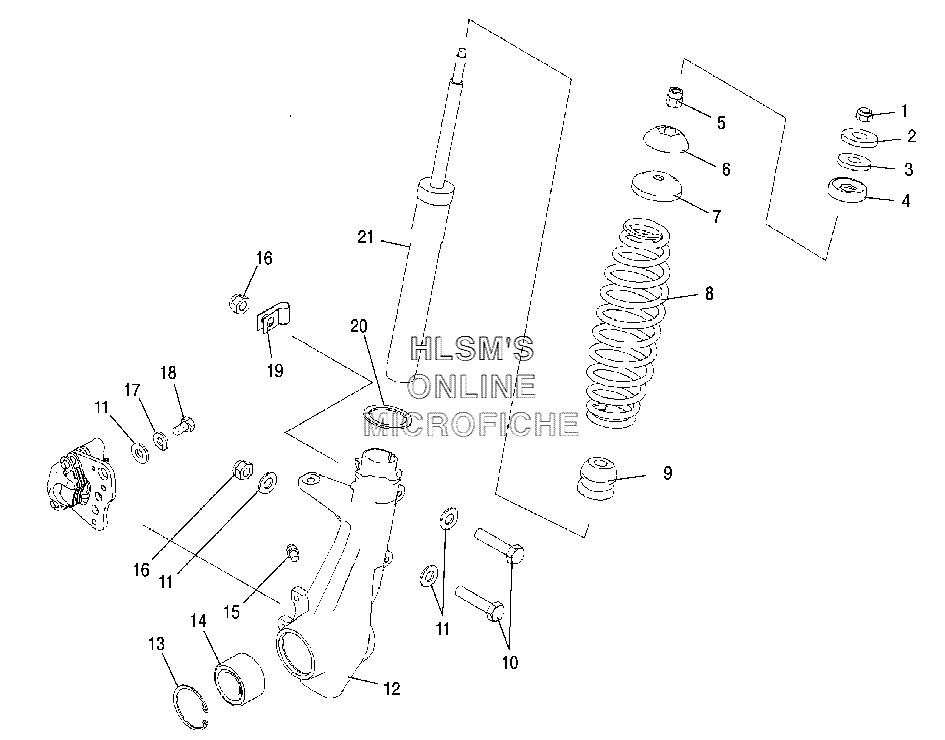

SUSPENSION - FRONT STRUT для Polaris Sportsman 500 HO EFI (A06MH50AL) (SUN RED) - 2006 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
55132062 SPACERSPACER
-
65432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87042299-067 SPRING-COMP (52-90#/13.8) (BLACK)SPRING-COMP (52-90#/13.8) (BLACK)
-
87042299-293 SPRING-COMP (55-90#/IN, 13.8) (RED)SPRING-COMP (55-90#/IN, 13.8) (RED)
-
87042299-385 SPRING-COMPSPRING-COMP
-
95412665 BUMPER-MCU (17.8MM ID)BUMPER-MCU (17.8MM ID)
-
107515339 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
125134154 HUBSTRUT ASSY (LEFT)HUBSTRUT ASSY (LEFT)
-
125134155 HUBSTRUT ASSY (RIGHT)HUBSTRUT ASSY (RIGHT)
-
137710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
143514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
157080306 FITTING, LUBE W/BALLFITTING, LUBE W/BALL
-
167542324 NUT, NYLOKNUT, NYLOK
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187512365 SCREW, CAPSCREW, CAP
-
197080367 CLAMP, CABLECLAMP, CABLE
-
205211115 WASHERWASHER
-
205211115 WASHERWASHER
-
217041762 STRUT-FRONT (18X30MM)STRUT-FRONT (18X30MM)
