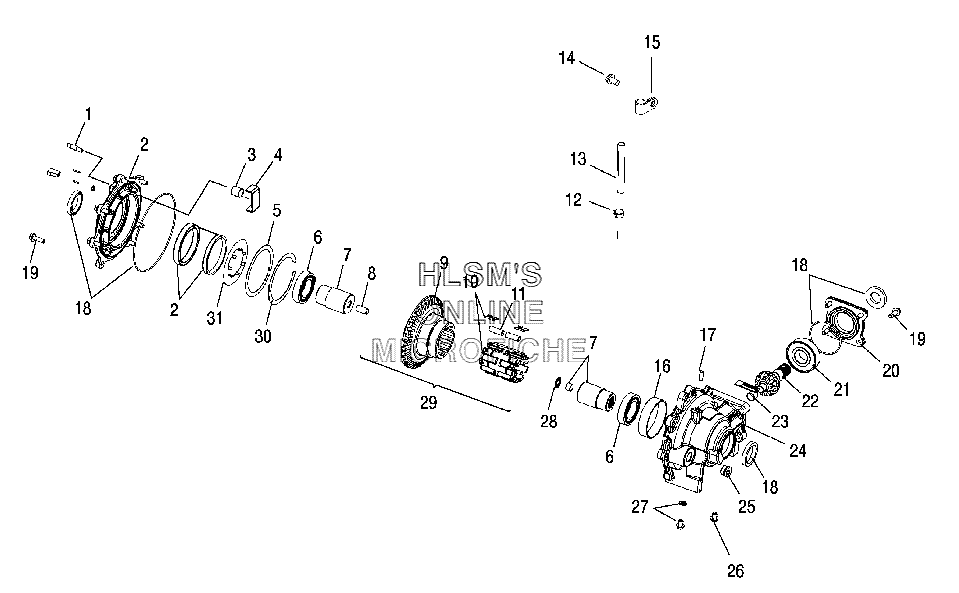

HOUSING - FRONT для Polaris Sportsman 500 HO EFI (A06MH50AT) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
13234163 SCREW-SETSCREW-SET
-
23234159 COVER PLATE ASSY (INCL. OUTPUT COVER, INSERT AND COIL)COVER PLATE ASSY (INCL. OUTPUT COVER, INSERT AND COIL)
-
33234375 BUSHINGBUSHING
-
43234165 PLATE-THRUSTPLATE-THRUST
-
53234161 PLATE-ARMATURE, SHIMPLATE-ARMATURE, SHIM
-
63233926 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
73233953 RACE/OUTPUT HUB ASSY (INCL. 28)RACE/OUTPUT HUB ASSY (INCL. 28)
-
83233928 PIN-DOWEL (1/2''DIA X 1'')PIN-DOWEL (1/2''DIA X 1'')
-
93234376 GEARGEAR
-
103234377 ROLL CAGE AND ARM PLATE ASSY (INCL. 31, SPRING AND ROLL CAGE)ROLL CAGE AND ARM PLATE ASSY (INCL. 31, SPRING AND ROLL CAGE)
-
113233957 ROLLER KITROLLER KIT
-
127080307 CLAMP, HOSECLAMP, HOSE
-
138450003-1525 LINE, FUEL (1/4 ID 1525 CM.)LINE, FUEL (1/4 ID 1525 CM.)
-
147512024 SCREWSCREW
-
157080693 CLAMP, HOSE, NYLONCLAMP, HOSE, NYLON
-
173234379 WASHERWASHER
-
183233956 SEAL, GEARCASE-FRONT KIT (INCL. O-RINGS AND SEALS)SEAL, GEARCASE-FRONT KIT (INCL. O-RINGS AND SEALS)
-
193233918 SCREW (INCL. O-RINGS AND SEALS)SCREW (INCL. O-RINGS AND SEALS)
-
203233947 COVER-INPUTCOVER-INPUT
-
213234112 BEARING-DEEP GROVE ROLLER BALLBEARING-DEEP GROVE ROLLER BALL
-
223233944 SHAFT-PINION (11 TEETH) (6.75DP)SHAFT-PINION (11 TEETH) (6.75DP)
-
253233942 PLUG-OIL FILLPLUG-OIL FILL
-
267518364 BOLTBOLT
-
273233951 DRAIN PLUG ASSY (INCL. PLUG AND WASHER)DRAIN PLUG ASSY (INCL. PLUG AND WASHER)
-
283233929 BEARING-NEEDLE ROLLER THRUSTBEARING-NEEDLE ROLLER THRUST
-
293234380 CLUTCH ASSY (INCL. 9-11)CLUTCH ASSY (INCL. 9-11)
-
303234162 RING-RETAINING, INTERNALRING-RETAINING, INTERNAL
-
313234160 ARMATURE PLATEARMATURE PLATE
-
-1332428 GEARCASE ASSY., FRONTGEARCASE ASSY., FRONT
-
-3233955 BOLT KITBOLT KIT
