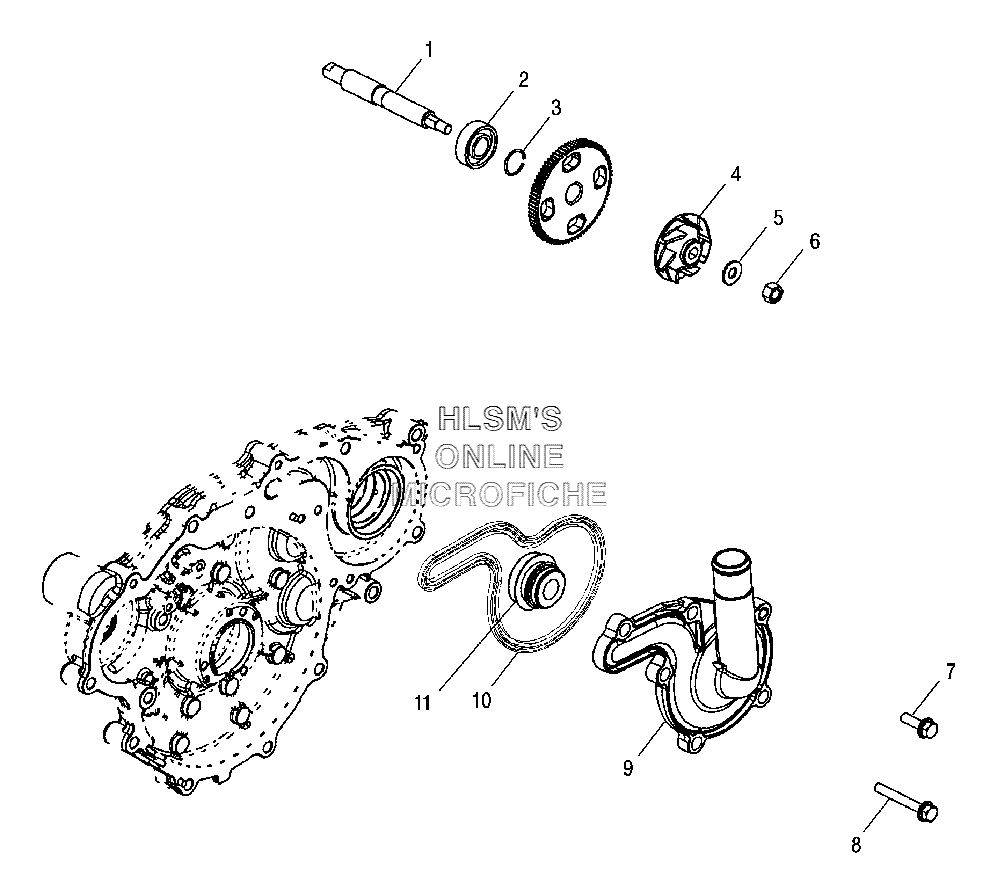

WATER PUMP для Polaris Sportsman 700 (A06MH68AD) (MED (YELLOW) - 2006 года выпуска
-
№АртикулНазвание
-
15135093 SHAFT-OIL/WATER PUMPSHAFT-OIL/WATER PUMP
-
23584404 BEARING, BALLBEARING, BALL
-
37710531 RING-RETAININGRING-RETAINING
-
45433684 IMPELLER-WATER PUMPIMPELLER-WATER PUMP
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX, , NYLOKNUT, HEX, , NYLOK
-
77516822 SCREWSCREW
-
87517950 SCREWSCREW
-
95631389 WATER PUMP KIT, COVERWATER PUMP KIT, COVER
-
105812571 SEAL-COVER, WATER PUMPSEAL-COVER, WATER PUMP
-
113610075 SEAL-WATER PUMPSEAL-WATER PUMP
