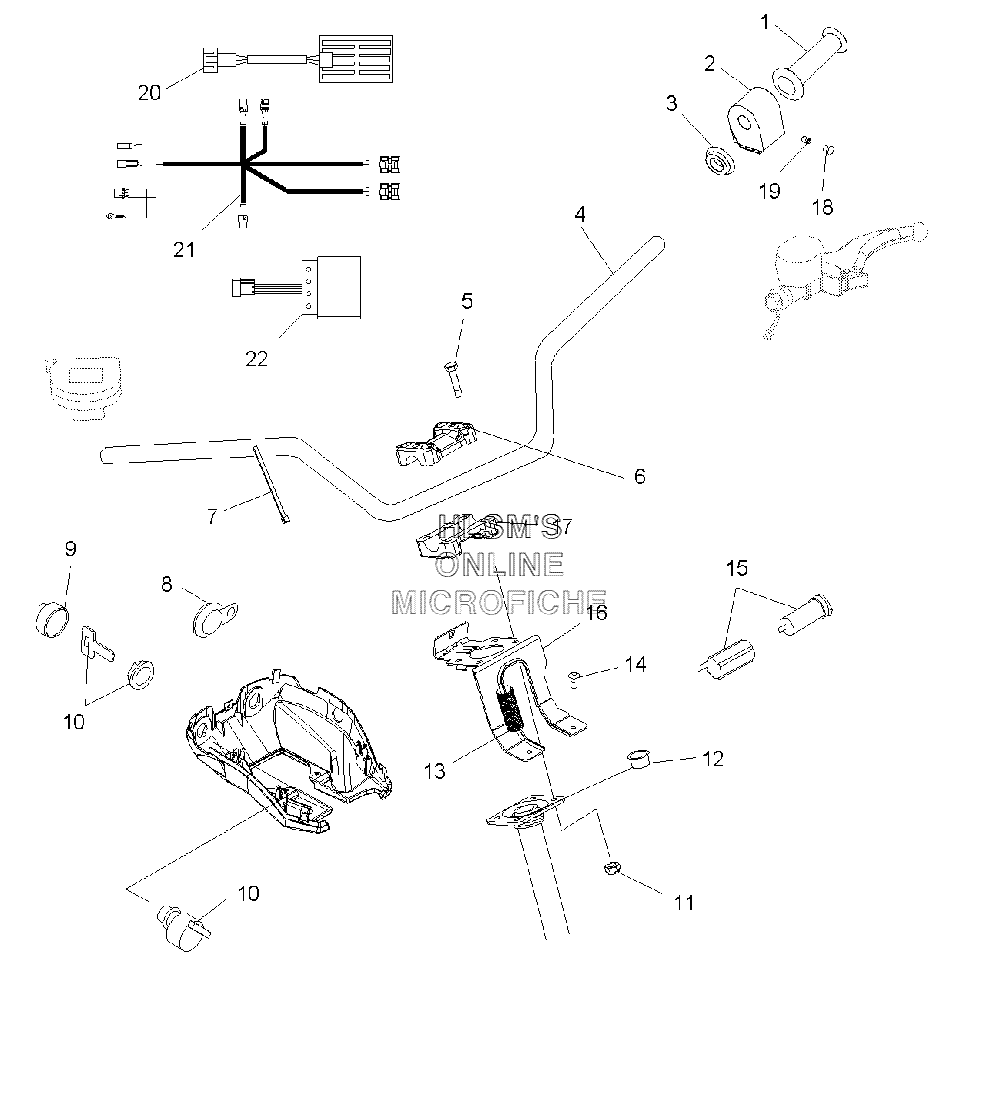

HANDLEBAR - CONTROL ASSY. для Polaris Sportsman 800 EFI (06MH76AX) (CAMO GREEN METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
15433834-070 GRIP, HNDLBAR, 7/8 ID (BLACK)GRIP, HNDLBAR, 7/8 ID (BLACK)
-
24011385 CENTERRL HI/LO/OFF (LEFT)CENTERRL HI/LO/OFF (LEFT)
-
35433903 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
45244581-067 TUBE, HANDLEBAR (BLACK)TUBE, HANDLEBAR (BLACK)
-
57515189 SCREWSCREW
-
65631517 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
77080138 CABLE TIECABLE TIE
-
85412330 GROMMETGROMMET
-
95433534 KEY COVER, KEYSWITCHKEY COVER, KEYSWITCH
-
104011002 SWITCH, KEY, 3 POS (INCL. KEY)SWITCH, KEY, 3 POS (INCL. KEY)
-
104010278 KEY BLANK (20/21/67/68)KEY BLANK (20/21/67/68)
-
104010321 KEY BLANK (22/23/27/28)KEY BLANK (22/23/27/28)
-
117542122 NUT, NYLOKNUT, NYLOK
-
125435661 PLUGPLUG
-
138360011-15 TUBING, CONVOLUTED 3/4"TUBING, CONVOLUTED 3/4"
-
147517317 SCREWSCREW
-
154010638 RECEPTACLE, POD MOUNT, 12 VOLTRECEPTACLE, POD MOUNT, 12 VOLT
-
165244969-067 BRACKET, POD MOUNTING (BLACK)BRACKET, POD MOUNTING (BLACK)
-
175631516 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
185432952 PLUG, HOLEPLUG, HOLE
-
197517625 SCREW SETSCREW SET
-
202410567 HAND WARMER ASSY.HAND WARMER ASSY.
-
212461213 HARNESS, WIRE, WARMERSHARNESS, WIRE, WARMERS
-
224010970 MODULE, LOAD SHED (LR 64)MODULE, LOAD SHED (LR 64)
