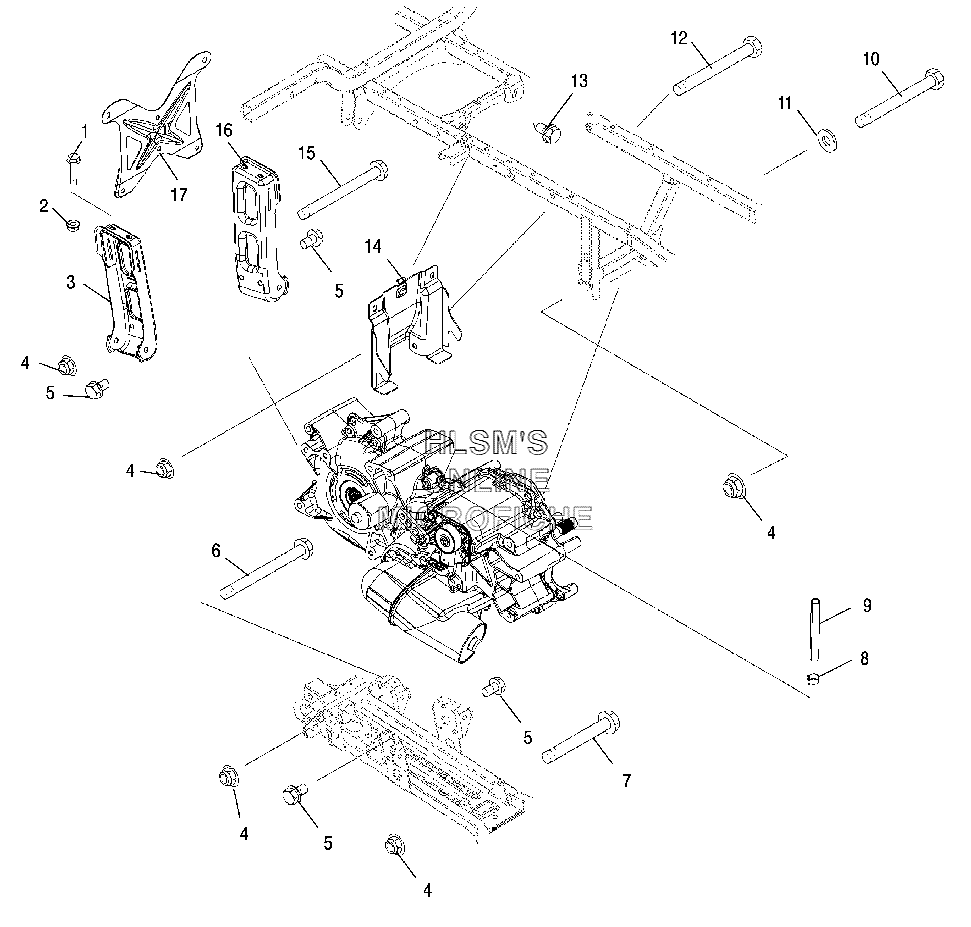

MOUNTING - TRANSMISSION для Polaris Sportsman X2 EFI (A06MN50AW) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
17542343 NUT, FLANGENUT, FLANGE
-
27518341 BOLTBOLT
-
35249525-067 MOUNT (IF BUILT BEFORE 3/02/06)MOUNT (IF BUILT BEFORE 3/02/06)
-
35250542-067 MOUNT (IF BUILT AFTER 3/02/06)MOUNT (IF BUILT AFTER 3/02/06)
-
47547180 NUT-FLANGEDNUT-FLANGED
-
57517632 SCREWSCREW
-
67518365 BOLTBOLT
-
77518279 SCREWSCREW
-
87080307 CLAMP, HOSECLAMP, HOSE
-
98450003-1525 LINE, FUEL (1/4 ID 1525 CM.)LINE, FUEL (1/4 ID 1525 CM.)
-
107517642 SCREWSCREW
-
117555806 WASHER, FLATWASHER, FLAT
-
127517646 SCREWSCREW
-
137515399 SCREWSCREW
-
145249905-067 BRACKET-BATTERY BOX (UPPER/BLACK)BRACKET-BATTERY BOX (UPPER/BLACK)
-
157518365 BOLTBOLT
-
165249524-067 MOUNT (IF BUILT BEFORE 3/02/06)MOUNT (IF BUILT BEFORE 3/02/06)
-
165250541-067 MOUNT (IF BUILT AFTER 3/02/06)MOUNT (IF BUILT AFTER 3/02/06)
-
175250178-067 BRACKET-SUPPORT (REAR/BLACK)BRACKET-SUPPORT (REAR/BLACK)
