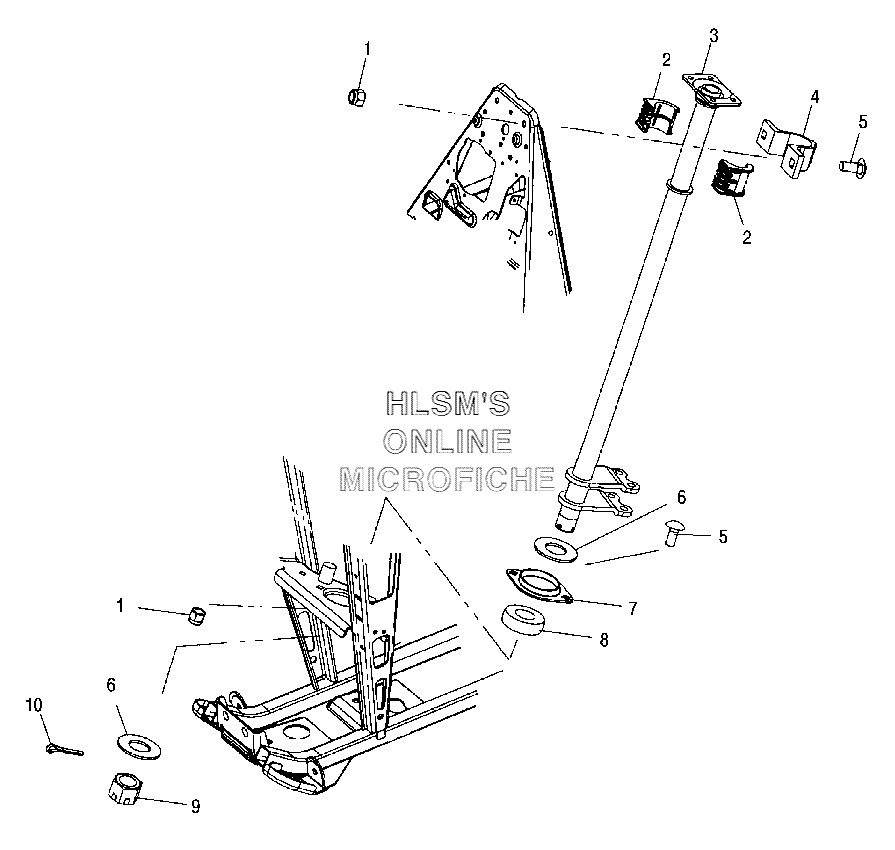

STEERING POST для Polaris Trail Blazer (A06BA25CA) - 2006 года выпуска
-
№АртикулНазвание
-
17542343 NUT, FLANGENUT, FLANGE
-
25433866 BUSHING-UPPERBUSHING-UPPER
-
31822631-067 WELD-STEERING POST (BLACK)WELD-STEERING POST (BLACK)
-
45246732 BRACKET-UPPER BUSHINGBRACKET-UPPER BUSHING
-
57517428 BOLTBOLT
-
67556162 BUSHINGBUSHING
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83514352 BEARINGBEARING
-
97547158 NUT-SLOTTEDNUT-SLOTTED
-
107661633 PIN, COTTERPIN, COTTER
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER - MOUNTING
- BRAKE - REAR MASTER CYLINDER
- BUMPER AND SHIELDS - FRONT
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- CRANKCASE W/ CYLINDER
- CRANKSHAFT W/ PISTON
- DECALS
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE MOUNTING
- HANDLEBAR
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HOUSING - REAR W/ AXLE
- MAGNETO
- MOUNTING - ENGINE
- OIL PUMP
- OIL TANK
- SEAT ASSY.
- STARTER - RECOIL
- STARTING MOTOR
- • STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
