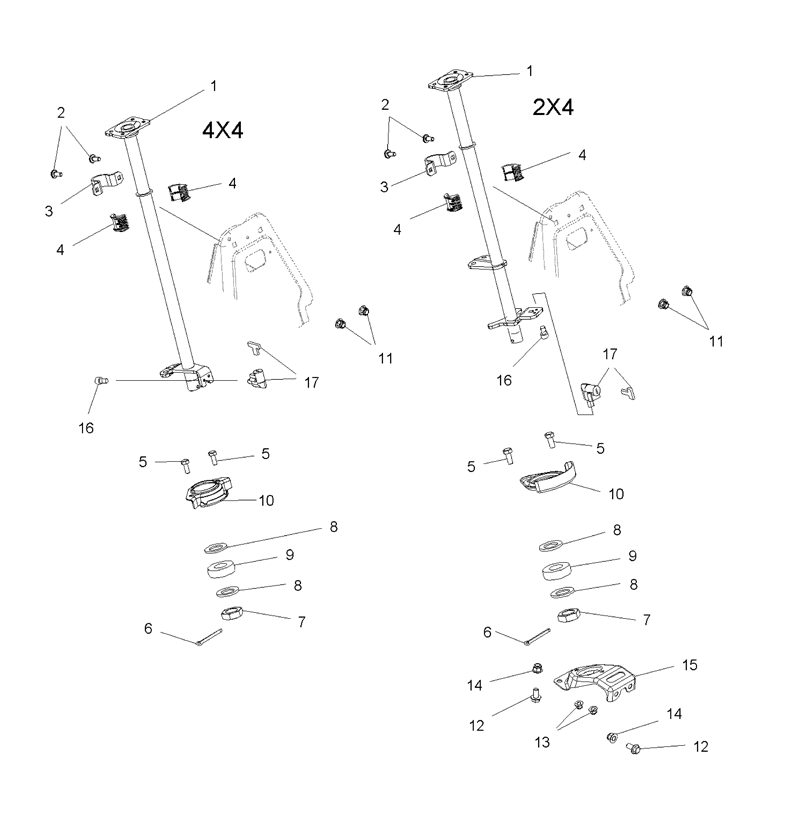

STEERING POST для Polaris HAWKEYE 2X4 INTL (A07LB27FA) - 2007 года выпуска
-
№АртикулНазвание
-
11015736-329 STEERING POST (BUILT 4/01/07 AND BEFORE)STEERING POST (BUILT 4/01/07 AND BEFORE)
-
11015962 STEERING POST (BUILT 4/02/07 AND AFTER)STEERING POST (BUILT 4/02/07 AND AFTER)
-
27518479 BOLT-M8X1.25X20,CARRIAGEBOLT-M8X1.25X20,CARRIAGE
-
35246732 BRKT-UPPER BUSHINGBRKT-UPPER BUSHING
-
45433866 BUSHING-UPPER,1 INBUSHING-UPPER,1 IN
-
57518702 BOLT-M8X1.25X20,HXHDFLGBOLT-M8X1.25X20,HXHDFLG
-
67661633 PIN, COTTER (BUILT 4/01/07 AND BEFORE)PIN, COTTER (BUILT 4/01/07 AND BEFORE)
-
77547318 NUT-STEERING POST (BUILT 4/01/07 AND BEFORE)NUT-STEERING POST (BUILT 4/01/07 AND BEFORE)
-
87556162 BUSHING-1X1 1/2X .145 (BUILT 4/01/07 AND BEFORE)BUSHING-1X1 1/2X .145 (BUILT 4/01/07 AND BEFORE)
-
93514352 BEARING-1XM52XM15,SPH (BUILT 4/01/07 AND BEFORE)BEARING-1XM52XM15,SPH (BUILT 4/01/07 AND BEFORE)
-
105249420 FLANGETTE,2X4 (BUILT 4/01/07 AND BEFORE)FLANGETTE,2X4 (BUILT 4/01/07 AND BEFORE)
-
117547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
127518700 BOLT-M10X1.5X20,HXHDFLGBOLT-M10X1.5X20,HXHDFLG
-
137547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
147547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
-
155249419-067 SUPPORT-STEERING,LOWER, BLACKSUPPORT-STEERING,LOWER, BLACK
-
167518604 BOLTBOLT
-
177081224 LOCK-STEERINGLOCK-STEERING
