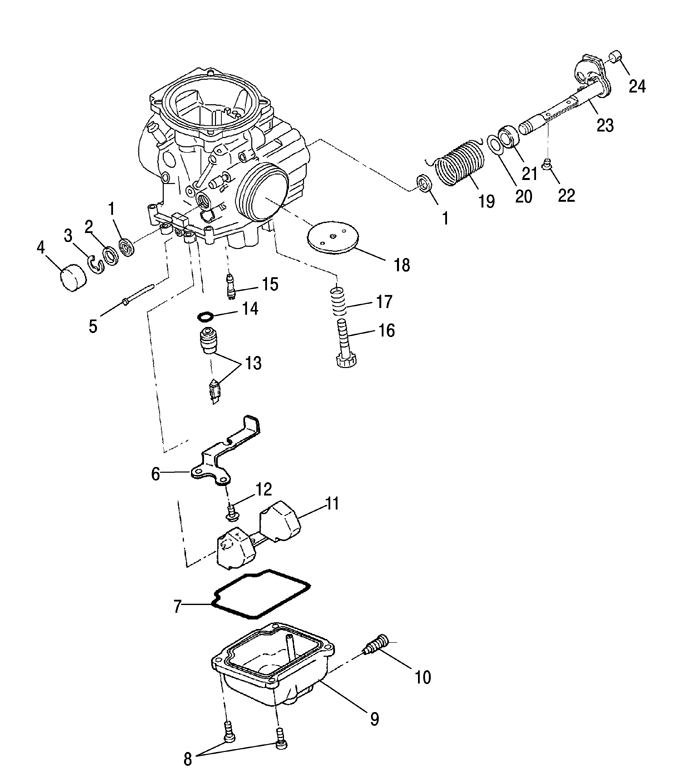

CARBURETOR - LOWER для Polaris HAWKEYE 4X4 (A07LH27AA) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13130515 SEALSEAL
-
23130517 WASHERWASHER
-
33130518 E-RINGE-RING
-
43130519 CAPCAP
-
53130361 PIN, FLOATPIN, FLOAT
-
63130594 PLATEPLATE
-
73130532 O-RINGO-RING
-
83130520 SCREWSCREW
-
93131622 FLOAT BODY ASSYFLOAT BODY ASSY
-
103130521 SCREWSCREW
-
113130529 FLOAT ASM.FLOAT ASM.
-
123130591 SCREWSCREW
-
133131360 VALVE-NEEDLE,1.5(PUSH IN)VALVE-NEEDLE,1.5(PUSH IN)
-
143130533 O-RINGO-RING
-
153130068 JET,PILOT,#45JET,PILOT,#45
-
163131423 SCREW-ADJUSTSCREW-ADJUST
-
173130836 SPRINGSPRING
-
183130502 VALVE,THROTTLE,100VALVE,THROTTLE,100
-
193130589 SPRINGSPRING
-
203131624 WASHERWASHER
-
213131679 RING-B401/180RING-B401/180
-
223130501 SCREWSCREW
-
233131602 ASSY-THROTTLE SHAFTASSY-THROTTLE SHAFT
-
243130543 GUIDE,CABLEGUIDE,CABLE
