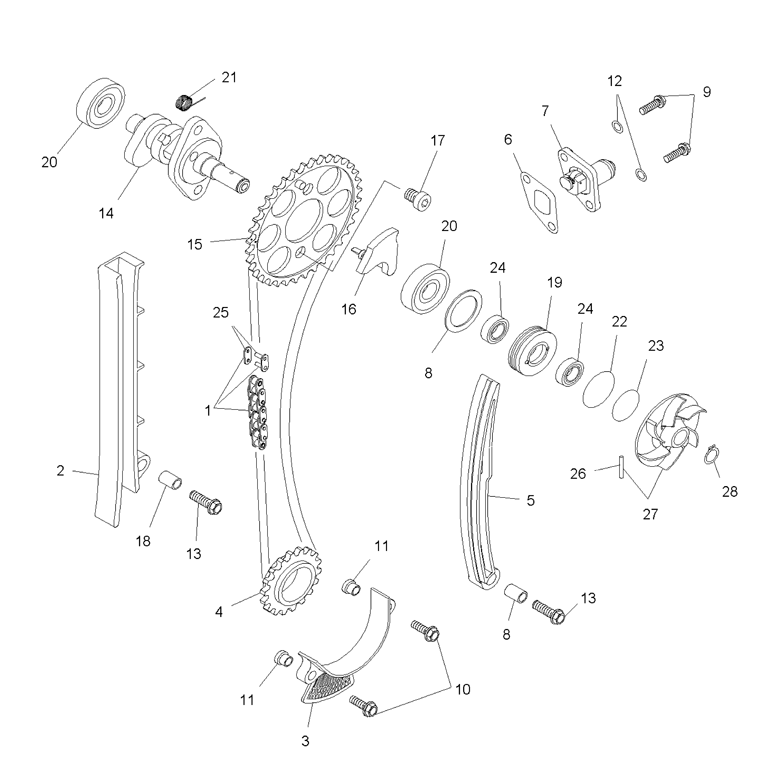

VALVE - TIMING для Polaris OUTLAW 525 (A07GP52AB) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13222158 CHAIN CAM DRIVE, 96LINKSCHAIN CAM DRIVE, 96LINKS
-
23021845 GUIDE CAM TIMING CHAINGUIDE CAM TIMING CHAIN
-
33021847 GUIDE CAM CHAIN, LOWERGUIDE CAM CHAIN, LOWER
-
43222157 SPROCKET CAM CHAIN DRIVE 18TSPROCKET CAM CHAIN DRIVE 18T
-
51203519 TENSIONER CAM CHAINTENSIONER CAM CHAIN
-
65813173 GASKET CAM CHAIN TENSIONERGASKET CAM CHAIN TENSIONER
-
71203522 CAM CHAIN TENSIONER ASSY,CAM CHAIN TENSIONER ASSY,
-
85135837 BUSHING SPACER 6.1X8.2X13.1MMBUSHING SPACER 6.1X8.2X13.1MM
-
97518723 SCREW, HEADSCREW, HEAD
-
107518732 SCREW, HEADSCREW, HEAD
-
115135843 BUSHING SPACER 5.2X7X10X7.7MMBUSHING SPACER 5.2X7X10X7.7MM
-
127556415 WASHER COPPER DIN7603 6X10X1MMWASHER COPPER DIN7603 6X10X1MM
-
137518736 SCREW, HEADSCREW, HEAD
-
143021848 CAMSHAFT 590/5521,CAMSHAFT 590/5521,
-
153222159 SPROCKET CAMSHAFTDRIVENSPROCKET CAMSHAFTDRIVEN
-
163021849 SHAFT AUTODECOMPRESSIONSHAFT AUTODECOMPRESSION
-
177518741 SCREW, HEADSCREW, HEAD
-
187556414 WASHER 26.7X34X1.3MMWASHER 26.7X34X1.3MM
-
195135846 CARRIER WATER PUMP SEALCARRIER WATER PUMP SEAL
-
203514581 BEARING BALL DPDRV 6201BEARING BALL DPDRV 6201
-
217043303 SPRING AUTO DECOMSPRING AUTO DECOM
-
225413252 O RING, 29.1X1.6MM NBR70O RING, 29.1X1.6MM NBR70
-
235413251 O RING 25.12X1.78MM NBR70O RING 25.12X1.78MM NBR70
-
245413306 SEAL SHAFT 10X18X4 VITONSEAL SHAFT 10X18X4 VITON
-
253222167 LINK CONNECTOR, CAM CHAINLINK CONNECTOR, CAM CHAIN
-
267661935 NEEDLE ROLLER DIN5402 3X17.8MMNEEDLE ROLLER DIN5402 3X17.8MM
-
275437029 IMPELLER WATERPUMPIMPELLER WATERPUMP
-
287710599 RING SNAP, DIN0471 10X1MMRING SNAP, DIN0471 10X1MM
