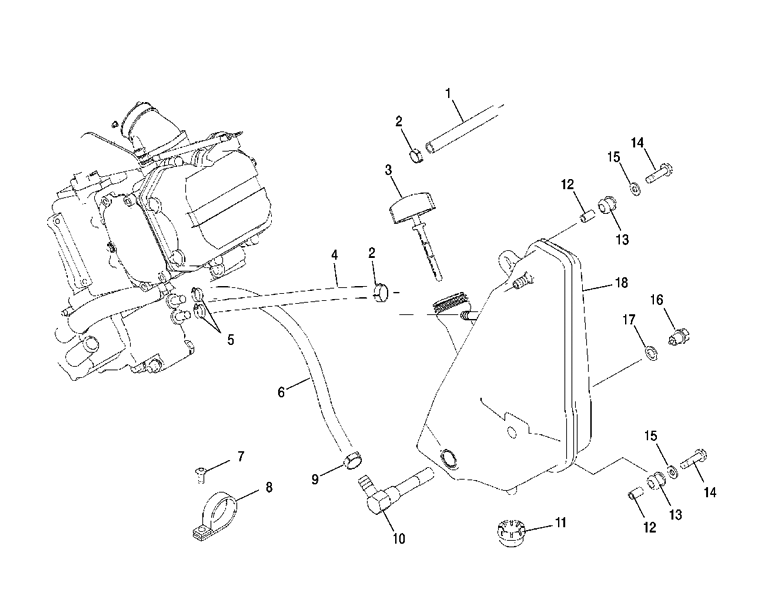

OIL TANK для Polaris SPORTSMAN 500 EFI (A07MH50AB) (SUNSET RED) - 2007 года выпуска
-
№АртикулНазвание
-
15413003 BREATHER-LINE-115 CM,SLITBREATHER-LINE-115 CM,SLIT
-
27080699 CLAMP,HOSECLAMP,HOSE
-
35434574 DIPSTICK-OIL TANKDIPSTICK-OIL TANK
-
48450073-600 LINE,BREATHER,3/8 ID.LINE,BREATHER,3/8 ID.
-
57080474 CLAMP, HOSECLAMP, HOSE
-
68450096-100 LINE-FUEL GOODYEAR,1/2''SAE 30R7LINE-FUEL GOODYEAR,1/2''SAE 30R7
-
77512024 SCREWSCREW
-
87080693 CLAMP,HOSE,NYLONCLAMP,HOSE,NYLON
-
97081026 CLAMP-HOSE,SPRING .81CLAMP-HOSE,SPRING .81
-
107052326 SCREEN-OIL FILTER,90°SCREEN-OIL FILTER,90°
-
115412507 GROMMETGROMMET
-
125333204 BUSHING,MTG.BUSHING,MTG.
-
135410828 GROMMET,MTG,RESERVOIRGROMMET,MTG,RESERVOIR
-
147512242 SCREWSCREW
-
157558301 WASHER, FLATWASHER, FLAT
-
167051524 PLUGPLUG
-
175850135 WASHERWASHER
-
181261653 WELDMENT-OIL TANKWELDMENT-OIL TANK
