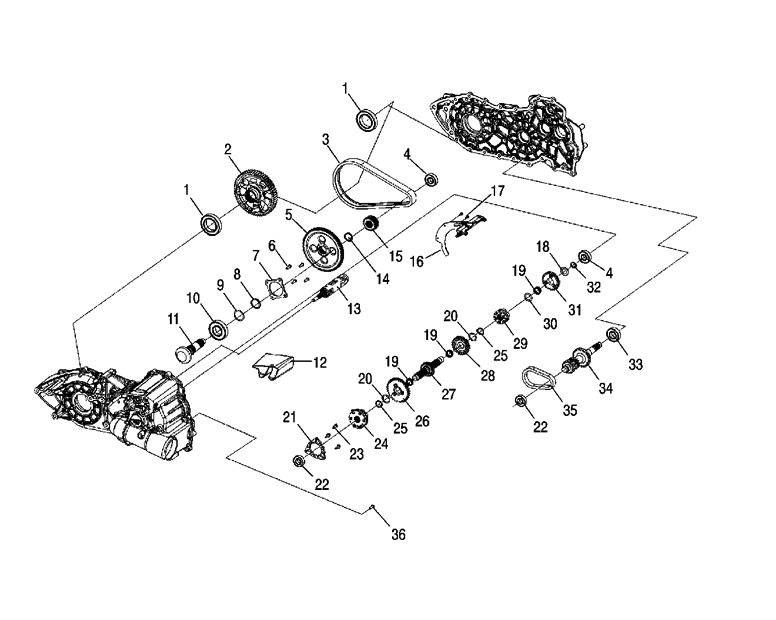

TRANSMISSION - INTERNALS для Polaris SPORTSMAN 500 EFI (A07MH50AQ) (CAMO) - 2007 года выпуска
-
№АртикулНазвание
-
-1332461 ASM-GEARCASE,DRUMSHIFT,NO PLASM-GEARCASE,DRUMSHIFT,NO PL
-
13233268 BEARING, BALLBEARING, BALL
-
23234058 SPROCKET,59TSPROCKET,59T
-
33234057 CHAINCHAIN
-
43234423 BEARING, BALL 6204 R 20X47X14BEARING, BALL 6204 R 20X47X14
-
53234062 GEAR OUTPUT,91TGEAR OUTPUT,91T
-
63234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
-
73234063 COVER-CENTER DRIVE BEARINGCOVER-CENTER DRIVE BEARING
-
83233364 RING,RETAININGRING,RETAINING
-
93234064 SPACERSPACER
-
103234065 BEARING-BALLBEARING-BALL
-
113234066 SHAFT-CENTER DRIVESHAFT-CENTER DRIVE
-
123234088 OIL-BAFFLEOIL-BAFFLE
-
133234360 DRUM,SHIFTDRUM,SHIFT
-
143233699 RING-RETAININGRING-RETAINING
-
153234060 SPROCKET,19TSPROCKET,19T
-
163234061 OIL DEFLECTOROIL DEFLECTOR
-
173233749 SCREWSCREW
-
183233176 WASHERWASHER
-
193233718 BEARING,NDL,SPLIT CAGEBEARING,NDL,SPLIT CAGE
-
203233851 WASHERWASHER
-
213233915 PLATE-PARK 12 FACEPLATE-PARK 12 FACE
-
223234074 BEARING-BALLBEARING-BALL
-
233233826 SCREWSCREW
-
243234257 DOG, L/PDOG, L/P
-
253233850 RING-RETAININGRING-RETAINING
-
263233852 GEAR-33T,6 FACE ENGAGEMENTGEAR-33T,6 FACE ENGAGEMENT
-
273234071 SHAFT-REVERSE,26TSHAFT-REVERSE,26T
-
283233854 SPROCKET-24T,6 FACE ENGAGEMENTSPROCKET-24T,6 FACE ENGAGEMENT
-
293234258 ENGAGEMENT DOG 6 FACEENGAGEMENT DOG 6 FACE
-
303233855 WASHERWASHER
-
313234068 GEAR-28TGEAR-28T
-
323234067 RING-RETAININGRING-RETAINING
-
333233019 BEARINGBEARING
-
343234075 SUBASM-INPUT SHAFTSUBASM-INPUT SHAFT
-
353233036 CHAIN,SILENT,34PCHAIN,SILENT,34P
-
363234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
