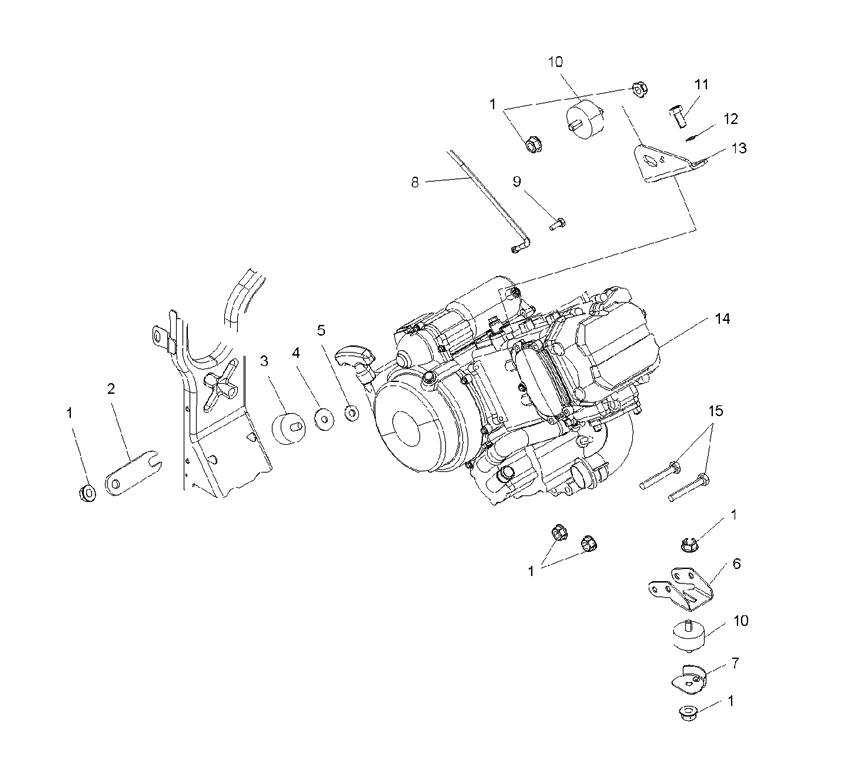

ENGINE - MOUNTING для Polaris SPORTSMAN 500 EFI (A07MH50AX) (CAMO GREEN METALLIC) - 2007 года выпуска

№

Артикул

Название
1

7547108 NUT

NUT

540 ₽
2

5224658-067 STRAP,FRAME SUPPORT, BLACK

STRAP,FRAME SUPPORT, BLACK

12 480 ₽
3

3110046 ISOLATOR-3/8-24M,3/8-16M,60DUR

ISOLATOR-3/8-24M,3/8-16M,60DUR

5 830 ₽
4

7555815 WASHER, FLAT

WASHER, FLAT

630 ₽
5

7555797 WASHER,FLAT

WASHER,FLAT

460 ₽
6

5249873 MOUNT-ENGINE, FRONT

MOUNT-ENGINE, FRONT

7 910 ₽
7

5245043 BRKT-TORQUE STOP PLTD

BRKT-TORQUE STOP PLTD

1 460 ₽
8

4010895 CABLE-BLACK(FRAME/ENGINE)

CABLE-BLACK(FRAME/ENGINE)

3 330 ₽
9

3082038 BOLTANDWASHER ASM.

BOLTANDWASHER ASM.

250 ₽
10

3110044 ISOLATOR-3/8-24M/M,60DURO

ISOLATOR-3/8-24M/M,60DURO

5 830 ₽
11

7512315 BOLT

BOLT

540 ₽
12

7552901 WASHER,SPRING LOCK

WASHER,SPRING LOCK

110 ₽
13

5241453 MOUNT-ENGINE,TOP PLTD

MOUNT-ENGINE,TOP PLTD

1 040 ₽
14

3089950 ENGINE-SB,EH500PLE210 (SEE NOTE)

ENGINE-SB,EH500PLE210 (SEE NOTE)

0 ₽
15

7518415 BOLT-3/8-24X23/4,HEX FLANGE,65

BOLT-3/8-24X23/4,HEX FLANGE,65

460 ₽
