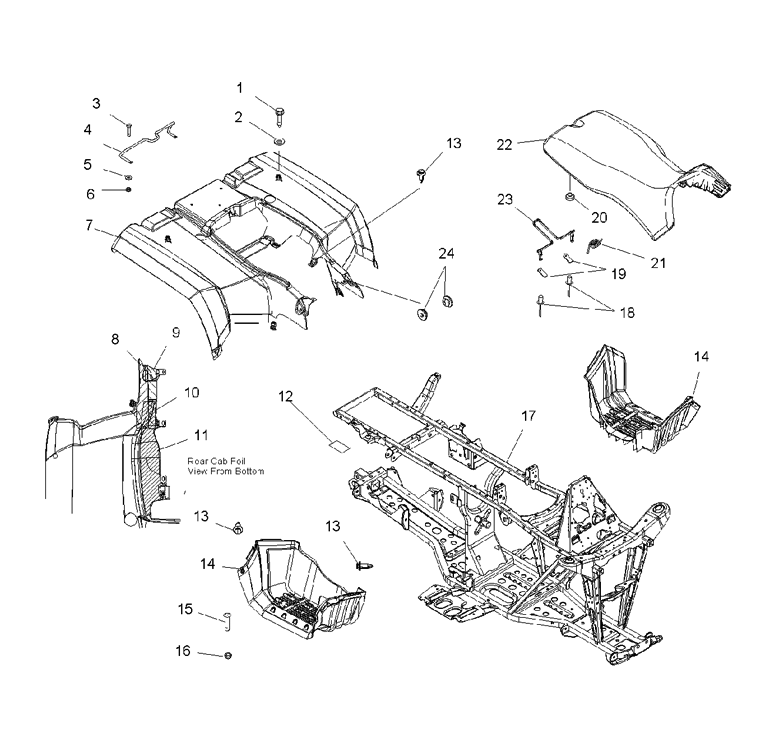

CAB- REAR - SEAT - FRAME для Polaris SPORTSMAN 500 EFI (A07MN50AF) (SONIC BLUE) - 2007 года выпуска`
-
№АртикулНазвание
-
17512095 SCREWSCREW
-
27555798 WASHERWASHER
-
37511930 SCREWSCREW
-
45250745 RETAINER-SEAT LATCHRETAINER-SEAT LATCH
-
57555792 WASHERWASHER
-
67541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
75436319-341 CAB-REAR,SONIC BLUECAB-REAR,SONIC BLUE
-
85813028 FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)
-
85813177 FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)
-
95813029 FOIL-REAR CAB,EDGEFOIL-REAR CAB,EDGE
-
105813030 FOIL-REAR CAB,MIDDLEFOIL-REAR CAB,MIDDLE
-
115813043 FOIL-REAR CAB,REARFOIL-REAR CAB,REAR
-
127170911 DECAL-HITCH,1225 LBS.DECAL-HITCH,1225 LBS.
-
137661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
-
145435354-070 FOOTWELL-BASIC,LH,BLK (IF BUILT BEFORE 7/27/06)FOOTWELL-BASIC,LH,BLK (IF BUILT BEFORE 7/27/06)
-
145436931-070 FOOTWELL-BASIC, LEFT HAND, BLACK (IF BUILT AFTER 7/27/06)FOOTWELL-BASIC, LEFT HAND, BLACK (IF BUILT AFTER 7/27/06)
-
145435355-070 FOOTWELL-BASIC,RH,BLK (IF BUILT BEFORE 7/27/06)FOOTWELL-BASIC,RH,BLK (IF BUILT BEFORE 7/27/06)
-
145436932-070 FOOTWELL-BASIC, RIGHT HAND, BLACK (IF BUILT AFTER 7/27/06)FOOTWELL-BASIC, RIGHT HAND, BLACK (IF BUILT AFTER 7/27/06)
-
157517230 SCREWSCREW
-
167542122 NUT-NYLOKNUT-NYLOK
-
171015738-067 WELD-MAIN FRAME, BLACKWELD-MAIN FRAME, BLACK
-
187621403 BLIND RIVETBLIND RIVET
-
195211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
205412067 BUMPER-RUBBERBUMPER-RUBBER
-
217041370 SPRING, LATCHSPRING, LATCH
-
222683433-070 SEAT ASM, BLACKSEAT ASM, BLACK
-
222683434-070 ASM-COVER, SPIRIT, 10"WHTDECALASM-COVER, SPIRIT, 10"WHTDECAL
-
231040387 LATCH,SEATLATCH,SEAT
-
245412623 GROMMET-RUBBER MOUNTGROMMET-RUBBER MOUNT
