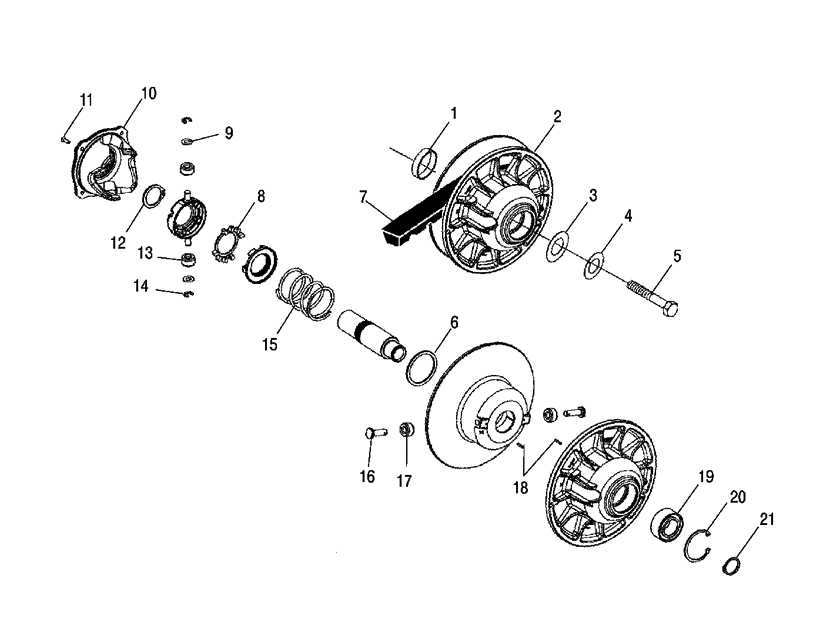

CLUTCH - DRIVEN MH50AL- MN50AF/AN/AT/AY для Polaris SPORTSMAN 500 EFI (A07MN50AT) (CAMO) - 2007 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING-7/8 X 3/8 X 16 GA-Y (10BUSHING-7/8 X 3/8 X 16 GA-Y (10
-
21322706 ASM-CLUTCH,DRIVEN,EBS,DAMPED (INCL. 6,8,9,11-14,16-19)ASM-CLUTCH,DRIVEN,EBS,DAMPED (INCL. 6,8,9,11-14,16-19)
-
35250562 WASHER-DOMED,SMALLWASHER-DOMED,SMALL
-
47552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
57515327 BOLTBOLT
-
63234200 WASHER,THRUSTWASHER,THRUST
-
73211113 BELT-DRIVE,EBSBELT-DRIVE,EBS
-
87710564 RETAINER-SPRING,INNERRETAINER-SPRING,INNER
-
97556226 WASHER-THRUSTWASHER-THRUST
-
103234356 ASM-CAMASM-CAM
-
113234192 SCREW,CAP TORX SFH #10-32X.625SCREW,CAP TORX SFH #10-32X.625
-
127710522 RET.RING-EXT 1.500RET.RING-EXT 1.500
-
133234207 ROLLER,CLUTCHROLLER,CLUTCH
-
147710523 RET.E-RING-E T.375RET.E-RING-E T.375
-
153234199 SPRING,COMPRESSION WHT/YLW (USE W/1322548)SPRING,COMPRESSION WHT/YLW (USE W/1322548)
-
153234451 SPRING-COMPRESSION,YEL,80-130 (USE W/1322706)SPRING-COMPRESSION,YEL,80-130 (USE W/1322706)
-
163234201 PIN,ROLLERPIN,ROLLER
-
173234197 ROLLER,CLUTCHROLLER,CLUTCH
-
183234202 PIN,SPRING SLOTTED .125X.625PIN,SPRING SLOTTED .125X.625
-
193234203 BEARING,BALL ANGULAR CONTACTBEARING,BALL ANGULAR CONTACT
-
203234204 RING,RETAINING BSC INTERNALRING,RETAINING BSC INTERNAL
-
213234205 RING,RETAININGRING,RETAINING
