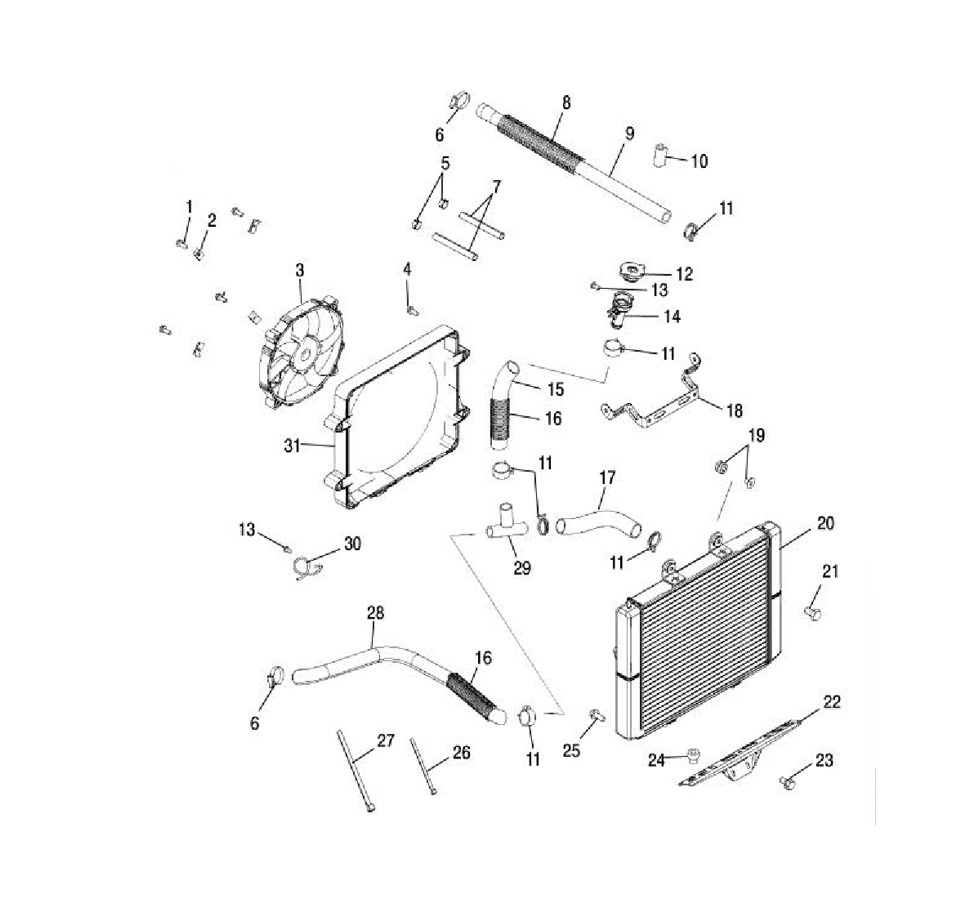

COOLING SYSTEM для Polaris SPORTSMAN 700 EFI (A07MH68AY) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
27547197 CLIP-''U'',M6.0X1.0CLIP-''U'',M6.0X1.0
-
32410366 FAN-11'' ASSEMBLY (IF BUILT BEFORE 10/05/06)FAN-11'' ASSEMBLY (IF BUILT BEFORE 10/05/06)
-
32410413 FAN-11'' ASSEMBLY,PKRD (IF BUILT AFTER 10/05/06)FAN-11'' ASSEMBLY,PKRD (IF BUILT AFTER 10/05/06)
-
47547220 SCR-M6-1.00X20,W/WASHERSCR-M6-1.00X20,W/WASHER
-
57080003 CLAMP,HOSECLAMP,HOSE
-
67081192 CLAMP-HOSE(WORM DR)25-40MMCLAMP-HOSE(WORM DR)25-40MM
-
78450120 COULD NOT FINDCOULD NOT FIND
-
85521597 GUARD-HOSE,9''GUARD-HOSE,9''
-
95412391 HOSE-UPPER ENGINE,1''HOSE-UPPER ENGINE,1''
-
105521131 TRIM,EDGE,6FT, BLACKTRIM,EDGE,6FT, BLACK
-
117081288 CLAMP-SPRING, 1.38''CLAMP-SPRING, 1.38''
-
121240044 CAP-PRESSURE,13 PSICAP-PRESSURE,13 PSI
-
137512084 SCREWSCREW
-
145435196 FILLER-NECK,REMOTE,COOLANT,2FITFILLER-NECK,REMOTE,COOLANT,2FIT
-
155412311 HOSE-FILLER NECKHOSE-FILLER NECK
-
165521749 GUARD-HOSE,4'' (IF BUILT AFTER 10/05/06)GUARD-HOSE,4'' (IF BUILT AFTER 10/05/06)
-
175412392 HOSE-LOWER RADIATOR,1''HOSE-LOWER RADIATOR,1''
-
185246656 BRKT-RADIATOR MNT,UPPERBRKT-RADIATOR MNT,UPPER
-
195411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
201240301 RADIATOR-CROSSFLOW (IF BUILT BEFORE 10/05/06)RADIATOR-CROSSFLOW (IF BUILT BEFORE 10/05/06)
-
201240301 RADIATOR-CROSSFLOW (IF BUILT AFTER 10/05/06)RADIATOR-CROSSFLOW (IF BUILT AFTER 10/05/06)
-
217515179 SCREWSCREW
-
225245773-067 BRKT-RADIATOR,LOWER, BLACKBRKT-RADIATOR,LOWER, BLACK
-
237517386 SCREWSCREW
-
245410584 BUSHING-MOUNT,LOWER RADIATORBUSHING-MOUNT,LOWER RADIATOR
-
257052296 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
267080138 CABLE TIECABLE TIE
-
277080492 CABLE TIE,11 INCHCABLE TIE,11 INCH
-
285412585 HOSE-LOWER ENGINE,SHORTERHOSE-LOWER ENGINE,SHORTER
-
297052397 CONNECTOR-T,1'',BARBEDCONNECTOR-T,1'',BARBED
-
307042089 RETAINER-HOSE,WIRE FORMRETAINER-HOSE,WIRE FORM
-
315434853 SHROUD-FANSHROUD-FAN
