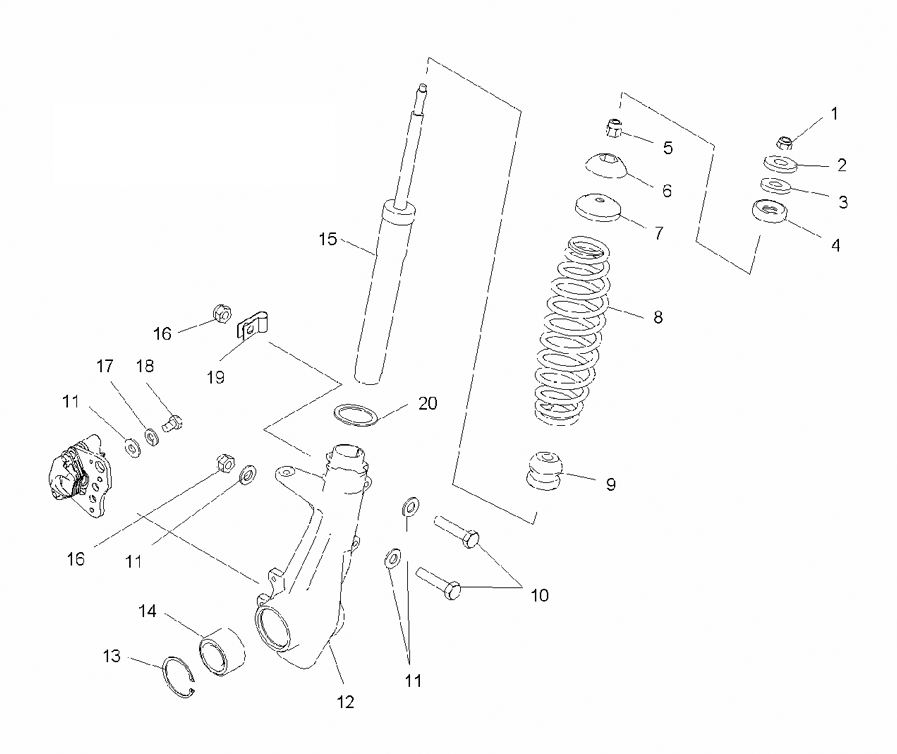

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 800 X2 EFI INT (A07TN76AU) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL, TOPPIVOT, BALL, TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87042301-067 SPRING-COMP, 75-111#/IN, 13.5, BLACKSPRING-COMP, 75-111#/IN, 13.5, BLACK
-
95412665 BUMPER-MCU, 17.8MM IDBUMPER-MCU, 17.8MM ID
-
107515339 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
121822825 ASM-HUBSTRUT, LEFT HAND, 4X4 [INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5]ASM-HUBSTRUT, LEFT HAND, 4X4 [INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5]
-
121822826 ASM-HUBSTRUT, RIGHT HAND, 4X4 [INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5]ASM-HUBSTRUT, RIGHT HAND, 4X4 [INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5]
-
137710507 RING, RET., 2.500 INTERNALRING, RET., 2.500 INTERNAL
-
143514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
157041762 STRUT-FRONT, 18X30MM, 184.7MM LTSTRUT-FRONT, 18X30MM, 184.7MM LT
-
167542324 NUT, NYLOKNUT, NYLOK
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187512365 SCREW, CAPSCREW, CAP
-
197080367 CLAMP, CABLECLAMP, CABLE
-
205211115 WASHERWASHER
