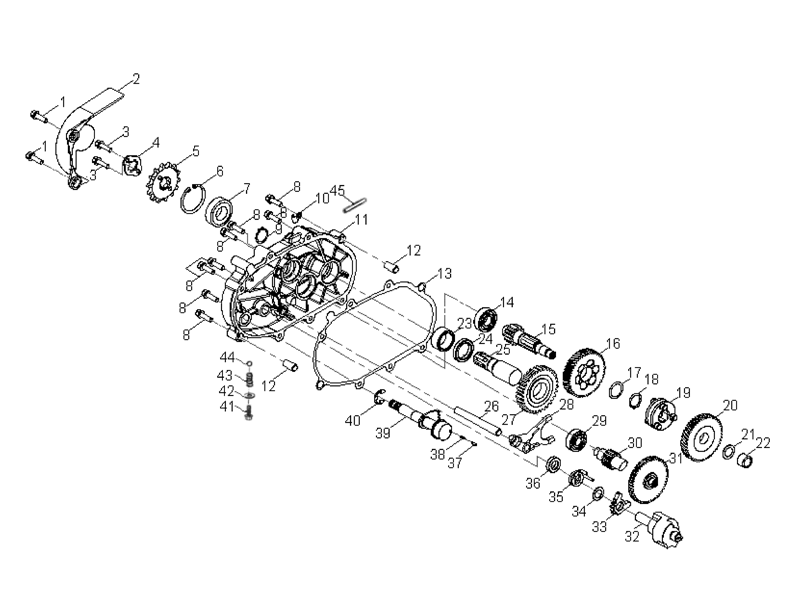

TRANSMISSION - INTERNALS для Polaris SPORTSMAN 90 (A07FA09AA) (CAMO) - 2007 года выпуска
-
№АртикулНазвание
-
0452159 DRUM GEAR SHIFT ASSY (INCLUDES 32 TO 36)DRUM GEAR SHIFT ASSY (INCLUDES 32 TO 36)
-
10453648 BOLTBOLT
-
20453650 COVER ASSY, SPROCKET, TRANSCOVER ASSY, SPROCKET, TRANS
-
30453505 BOLT TRANSMISSIONBOLT TRANSMISSION
-
40453458 BRKT SPROCKETBRKT SPROCKET
-
50453457 SPROCKET DRIVESPROCKET DRIVE
-
60450162 CIRCLIP INTERNALCIRCLIP INTERNAL
-
70453978 BEARING BALLBEARING BALL
-
80452331 BOLT HEX, FLANGEBOLT HEX, FLANGE
-
90452339 CLIP RETAINERCLIP RETAINER
-
100453585 RETAINER CYLINDER HEADRETAINER CYLINDER HEAD
-
110453642 COVER ASSY, TRANSMISSION, OUTLAW (INCLUDES 45)COVER ASSY, TRANSMISSION, OUTLAW (INCLUDES 45)
-
120450142 PIN DOWELPIN DOWEL
-
130453646 GASKET COVER, TRANSMISSIONGASKET COVER, TRANSMISSION
-
140452156 BEARING MAIN TRNSMSN SHAFTBEARING MAIN TRNSMSN SHAFT
-
150453645 SHAFT TRANSMISSION, OUTLAWSHAFT TRANSMISSION, OUTLAW
-
160453312 REVERSE GEAR ASSYREVERSE GEAR ASSY
-
170452152 WASHER FLATWASHER FLAT
-
180450060 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
190452151 RATCHET SHIFTRATCHET SHIFT
-
200453220 SPUR GEAR ASSYSPUR GEAR ASSY
-
210452148 WASHER FLATWASHER FLAT
-
220452147 COLLAR SHAFTCOLLAR SHAFT
-
230450258 BEARINGBEARING
-
240450259 SEAL OILSEAL OIL
-
250453643 SHAFT DRIVE, OUTLAWSHAFT DRIVE, OUTLAW
-
260452158 SHAFT GEAR SHIFTSHAFT GEAR SHIFT
-
270453644 GEAR FINAL, OUTLAWGEAR FINAL, OUTLAW
-
280452157 FORK SHIFTFORK SHIFT
-
290450254 BEARING BALLBEARING BALL
-
300452145 SHAFT COUNTERSHAFT COUNTER
-
310452146 GEAR COUNTERGEAR COUNTER
-
320453461 GEAR DRUM, SHIFTGEAR DRUM, SHIFT
-
330453462 DETENT SHIFTERDETENT SHIFTER
-
340453512 WASHER DRUM SHIFTWASHER DRUM SHIFT
-
350453463 SPRING TRANSMISSION LEVERSPRING TRANSMISSION LEVER
-
360453464 COLLAR TRANS SHIFT DRUMCOLLAR TRANS SHIFT DRUM
-
370452162 SPRING DRUM SENSORSPRING DRUM SENSOR
-
380452163 ROLLER DRUM SENSORROLLER DRUM SENSOR
-
390452160 SPINDLE SHIFTSPINDLE SHIFT
-
400452161 E CLIPE CLIP
-
410452137 BOLT HEXBOLT HEX
-
420452136 WASHER FLATWASHER FLAT
-
430452135 SPRING, DETENT 10 KGSPRING, DETENT 10 KG
-
440452134 BALL STEELBALL STEEL
-
450453640 TUBE BREATHER, TRANSMISSIONTUBE BREATHER, TRANSMISSION
