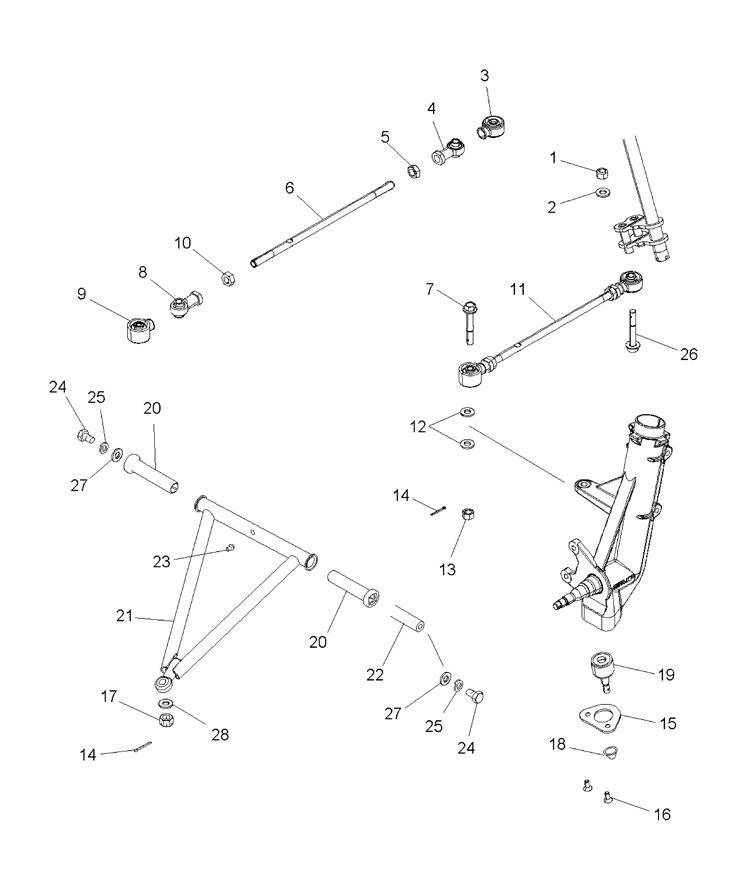

SUSPENSION - FRONT для Polaris TRAIL BOSS 330 (A07CA32AA) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27558403 WASHER, WROUGHTWASHER, WROUGHT
-
35412928 BOOT SEAL, ROD END, 1/2 INBOOT SEAL, ROD END, 1/2 IN
-
47061139 ROD END, 3/8, 1/2 20(RIGHT) 44DEGROD END, 3/8, 1/2 20(RIGHT) 44DEG
-
57542711 NUT JAMNUT JAM
-
65134242 ROD TIE, 1/2 20X11.45ROD TIE, 1/2 20X11.45
-
77517909 BOLT M10X1.25X65, HX WASH HDBOLT M10X1.25X65, HX WASH HD
-
87061138 ROD END, 10MM, 1/2 20(LEFT) 42 DEGROD END, 10MM, 1/2 20(LEFT) 42 DEG
-
95412929 BOOT SEAL, ROD END, 10MMBOOT SEAL, ROD END, 10MM
-
107547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
111822851 TIE ROD ASSY, 1/2 20X14.16 (INCLUDES 3 TO 6, 8 TO 10)TIE ROD ASSY, 1/2 20X14.16 (INCLUDES 3 TO 6, 8 TO 10)
-
127556099 WASHERWASHER
-
137547177 NUT M10X1.25 HX LOCK YNUT M10X1.25 HX LOCK Y
-
147661203 PIN, COTTERPIN, COTTER
-
155211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
177542438 NUT, CASTLENUT, CASTLE
-
185412658 BOOT BALLJOINT, GREASELESS, STRTBOOT BALLJOINT, GREASELESS, STRT
-
197061130 COULD NOT FINDCOULD NOT FIND
-
197061153 BALLJOINT GREASELESS, STRUTBALLJOINT GREASELESS, STRUT
-
205434551 BUSHING A ARM, LONG (BLACK)BUSHING A ARM, LONG (BLACK)
-
212202278 A FRAME KIT (LEFT) (1541872) (INCLUDES 14,20,22 TO 25, 27)A FRAME KIT (LEFT) (1541872) (INCLUDES 14,20,22 TO 25, 27)
-
212202279 A FRAME KIT (RIGHT) (1541873) (INCLUDES 14,20,22 TO 25, 27)A FRAME KIT (RIGHT) (1541873) (INCLUDES 14,20,22 TO 25, 27)
-
225133806 SHAFT A ARMSHAFT A ARM
-
237080433 FITTING, LUBRICATION, THREADED (10FITTING, LUBRICATION, THREADED (10
-
247512492 SCREWSCREW
-
257555832 WASHERWASHER
-
267518033 BOLT 3/8 24X4 SPECIAL FLANGE YBOLT 3/8 24X4 SPECIAL FLANGE Y
-
277552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
287555857 WASHER, FLAT (IF BUILT BEFORE 10/27/06) (USE WITH 7061130)WASHER, FLAT (IF BUILT BEFORE 10/27/06) (USE WITH 7061130)
