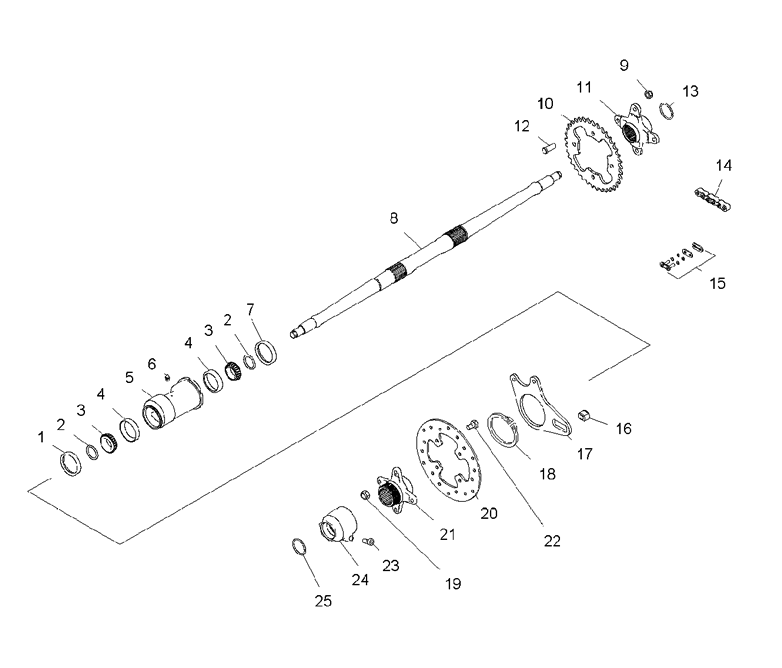

AXLE - REAR W/ HOUSING для Polaris OUTLAW 525 S (GJ52AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
13610105 SEAL-DOUBLE LIP.2.00X2.75SEAL-DOUBLE LIP.2.00X2.75
-
25412220 O-RING,1.549 ID X .103O-RING,1.549 ID X .103
-
33514393 BEARING-CONE,TAPER,TIM,S32008XBEARING-CONE,TAPER,TIM,S32008X
-
43514394 BEARING-CUP,TAPER,TIM,Y32008XBEARING-CUP,TAPER,TIM,Y32008X
-
55133248 HOUSING-AXLE,REAR(MACH)HOUSING-AXLE,REAR(MACH)
-
67080306 FITTING,LUBE.W/BALL CK.FITTING,LUBE.W/BALL CK.
-
73610089 SEAL-LIP,2.00X2.75X.25SEAL-LIP,2.00X2.75X.25
-
85133722 AXLE-REAR,4340 CHROMOLYAXLE-REAR,4340 CHROMOLY
-
97542439 NUT,NYLOKNUT,NYLOK
-
103222152 SPROCKET-38T,REAR,YSPROCKET-38T,REAR,Y
-
115130001 HUB-SPROCKET(MACH)HUB-SPROCKET(MACH)
-
127512405 BOLTBOLT
-
137670147 RING-RETAINING,1.522 0D X.140RING-RETAINING,1.522 0D X.140
-
143221193-098 CHAIN-520 ORD4,O-RING,98 PTCHCHAIN-520 ORD4,O-RING,98 PTCH
-
153221192 LINK-CONNECTOR,PRESS,520,ORD4LINK-CONNECTOR,PRESS,520,ORD4
-
165136470 PLUGPLUG
-
175245939 MOUNT-CALIPER,AXLEMOUNT-CALIPER,AXLE
-
187710516 RING-RETAINING,EXTERNAL,3.125RING-RETAINING,EXTERNAL,3.125
-
197547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
205246155 DISC-BRAKE,7.75 ODDISC-BRAKE,7.75 OD
-
215133340 HUB-REAR DISC (MACH) 4''HUB-REAR DISC (MACH) 4''
-
227518514 BOLT-M8X1.25X25,HXFLG-OLIVE DBOLT-M8X1.25X25,HXFLG-OLIVE D
-
237515102 SCREWSCREW
-
245133428 NUT-AXLENUT-AXLE
-
257710405 RING, SNAPRING, SNAP
