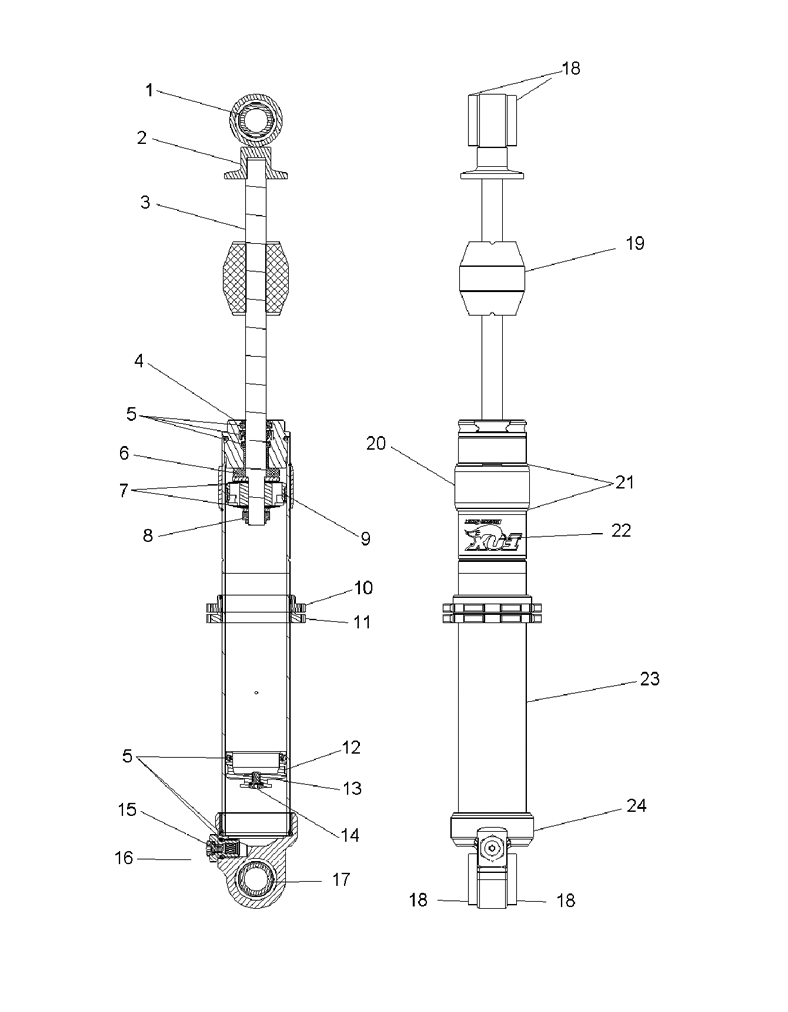

SUSPENSION - FRONT FOX SHOCK для Polaris OUTLAW 525 S (GJ52AB) (WHITE) - 2008 года выпуска
-
№АртикулНазвание
-
7043358 SHOCK-FRONTSHOCK-FRONT
-
11500747 SLEEVE 213-01-101 (INCL. PISTON, WASHERS)SLEEVE 213-01-101 (INCL. PISTON, WASHERS)
-
21500013 EYELETEYELET
-
31500272 SHAFT-.498 X 8.7SHAFT-.498 X 8.7
-
41500570 ASM-BEARINGASM-BEARING
-
51500767 KIT-SEAL REBUILD (803-00-053)KIT-SEAL REBUILD (803-00-053)
-
61500074 BUMPER, RUBBERBUMPER, RUBBER
-
81500016 NUT, LOCKNUT, LOCK
-
91500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
101500753 RING PRELOAD 234-00-103RING PRELOAD 234-00-103
-
111500754 RING PRELOAD B/U 234-00-104RING PRELOAD B/U 234-00-104
-
121500006 RING, PISTON, FLOATING,RING, PISTON, FLOATING,
-
131500275 FLOATING PISTON ASM 805-00-011FLOATING PISTON ASM 805-00-011
-
141500161 SCREW/O-RING ASM.SCREW/O-RING ASM.
-
151500019 SCREWSCREW
-
161500014 VALVE ASM, AIR (INCLUDES 15)VALVE ASM, AIR (INCLUDES 15)
-
171500497 SLEEVE, .57X.81X1.15SLEEVE, .57X.81X1.15
-
181500103 BSG-EYELETBSG-EYELET
-
191500567 BUMPER, B/OBUMPER, B/O
-
201500752 SPRING GUIDE 234-00-094SPRING GUIDE 234-00-094
-
211500607 WIRE RINGWIRE RING
-
221500790 FOX DECALFOX DECAL
-
231500789 BODY, 9.50 TLGBODY, 9.50 TLG
-
241500569 ASM-BODY CAPASM-BODY CAP
