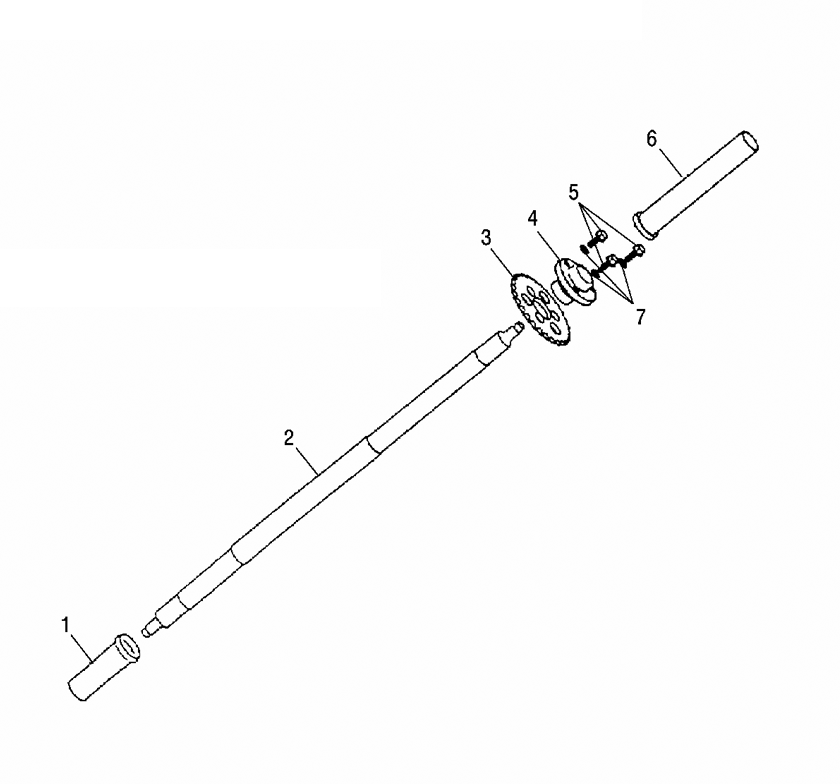

AXLE - REAR для Polaris OUTLAW 90 (KA09AD) (PINK POWER) - 2008 года выпуска
-
№АртикулНазвание
-
10453567 SPACER-TUBE, LEFT HANDSPACER-TUBE, LEFT HAND
-
20453491 AXLE-REARAXLE-REAR
-
30450480 SPROCKET, DRIVE, FINAL 41201-151-000SPROCKET, DRIVE, FINAL 41201-151-000
-
40450481 HOLDER, SPROCKET 41210-131-000HOLDER, SPROCKET 41210-131-000
-
50450323 BOLT-HEXBOLT-HEX
-
60453709 SPACER-TUBE, AXLESPACER-TUBE, AXLE
-
70450483 WASHER-SPRINGWASHER-SPRING
