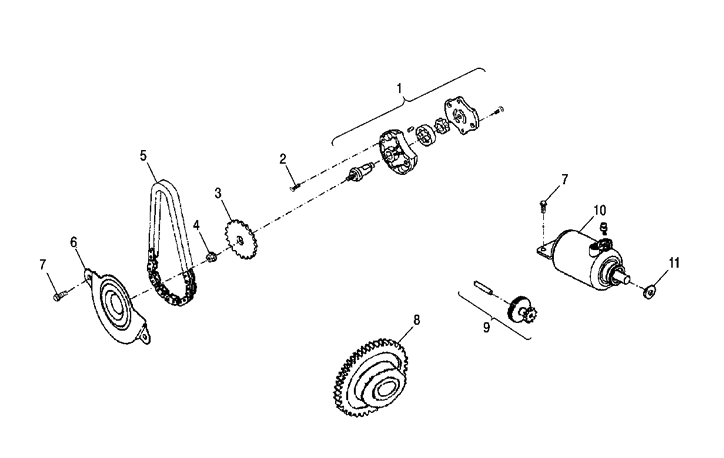

STARTING MOTOR /W GENERATOR для Polaris PHOENIX 200 (PB20AD) (PINK POWER) - 2008 года выпуска
-
№АртикулНазвание
-
10452503 PUMP-OILPUMP-OIL
-
20452511 SCREWSCREW
-
30452504 SPROCKET-OIL PUMPSPROCKET-OIL PUMP
-
40450880 NUT-FLG W/SERRNUT-FLG W/SERR
-
50452505 CHAIN-OIL PUMPCHAIN-OIL PUMP
-
60452506 COVER-OIL PUMPCOVER-OIL PUMP
-
70452330 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
80454054 GEAR-STARTER, PHXGEAR-STARTER, PHX
-
90454021 GEAR-STARTER, LOWERGEAR-STARTER, LOWER
-
100453778 MOTOR, STARTINGMOTOR, STARTING
-
110452510 O-RINGO-RING
