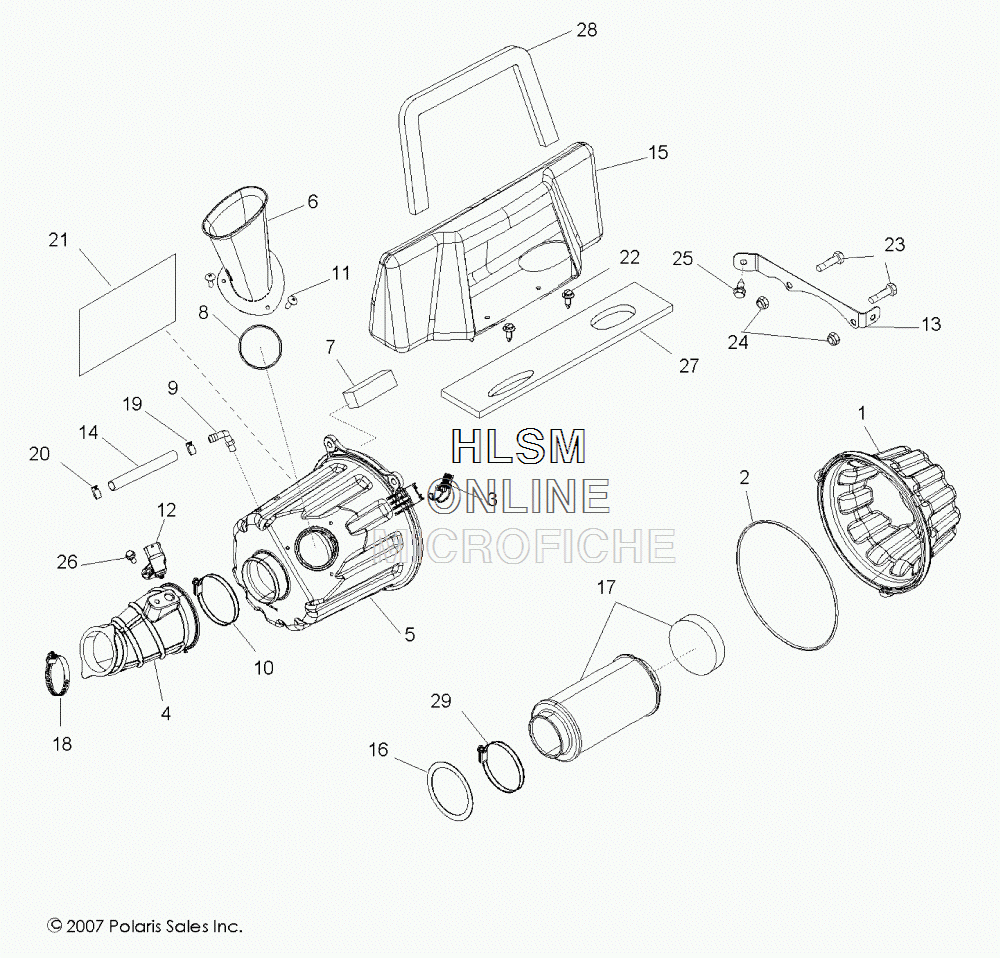

AIR INTAKE SYSTEM для Polaris RZR 800 EFI SAGE BRUSH METALLIC [R08VH76AD) - 2008 года выпуска
-
№АртикулНазвание
-
15436734 CAP, AIRBOXCAP, AIRBOX
-
25813078 SEAL, AIRBOXSEAL, AIRBOX
-
37710621 CLIP, COVERCLIP, COVER
-
45413029 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
55436733 CAN, AIRBOXCAN, AIRBOX
-
65436735 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
75812910 FILTER, CRANKCASEFILTER, CRANKCASE
-
85813099 SEAL, DUCT, INTAKESEAL, DUCT, INTAKE
-
97052164 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
107081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117517317 SCREWSCREW
-
122410422 SENSORSENSOR
-
135250302 BRACKET, MOUNTBRACKET, MOUNT
-
145412615 HOSE, BREATHERHOSE, BREATHER
-
155436625-070 BOX, INTAKE BLACKBOX, INTAKE BLACK
-
165252309 SPACER, INTAKE STOPSPACER, INTAKE STOP
-
171240482 ASM., FILTER, INTAKE (INCL. FILTER AND FOAM SEAL)ASM., FILTER, INTAKE (INCL. FILTER AND FOAM SEAL)
-
187080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
197080699 CLAMP, HOSE, SPRING, .69 INCHCLAMP, HOSE, SPRING, .69 INCH
-
207080694 CLAMP, HOSE, SPRING, .75 INCHCLAMP, HOSE, SPRING, .75 INCH
-
215813106 FOILFOIL
-
227661855 RIVETRIVET
-
237512310 BOLTBOLT
-
247542324 NUT, NYLOKNUT, NYLOK
-
257512399 SCREWSCREW
-
267517658 SCREWSCREW
-
275813199 FOAM, SEAL, INTAKE DUCTFOAM, SEAL, INTAKE DUCT
-
285813198 FOAM, SEAL, AIRBOXFOAM, SEAL, AIRBOX
-
297080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
