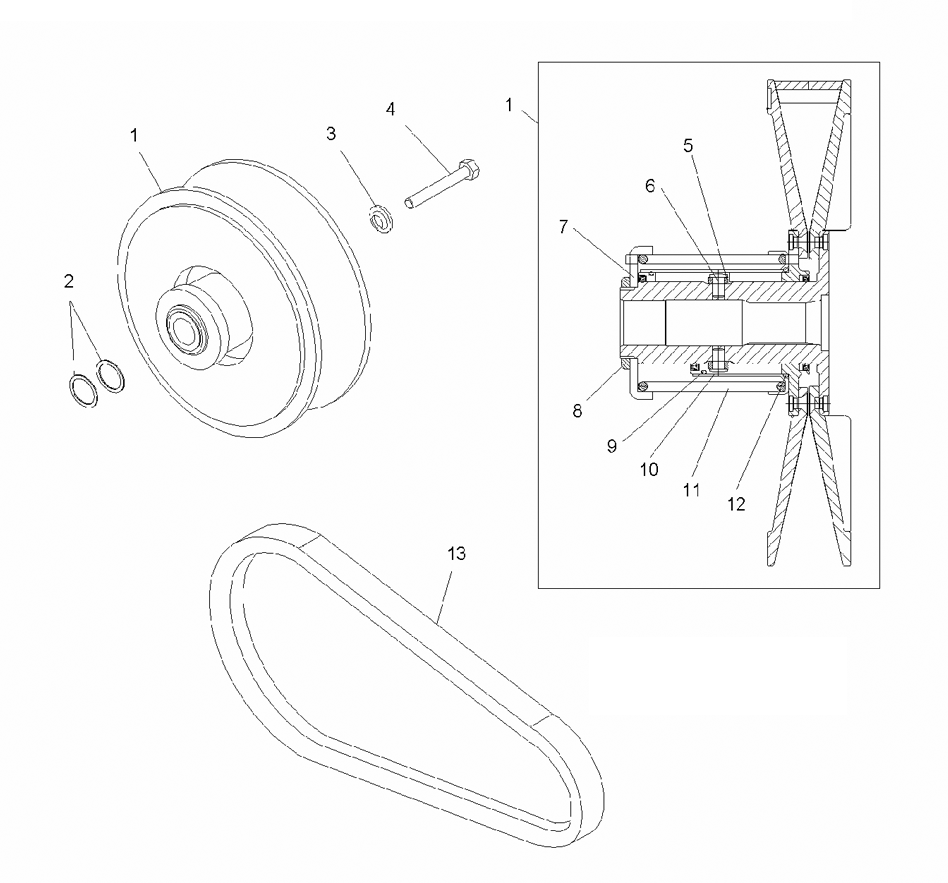

CLUTCH - SECONDARY для Polaris SPORTSMAN 400 HO 4X4 (LH46AQ) (CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
11322775 DRIVE TRAIN, SECONDARY CLUTCH ASSY. [INCL 3-12]DRIVE TRAIN, SECONDARY CLUTCH ASSY. [INCL 3-12]
-
27556120 BUSHING-7/8 X 3/8 X 16 GA-YBUSHING-7/8 X 3/8 X 16 GA-Y
-
35220646 WASHER, DOMEDWASHER, DOMED
-
47518471 BOLT-M8X1.25X25, HXHD, W/PATCHBOLT-M8X1.25X25, HXHD, W/PATCH
-
57661888 PIN-ROLLERPIN-ROLLER
-
65334692 ROLLERROLLER
-
75249799 SEAT-SPRING, 491240SEAT-SPRING, 491240
-
87547331 NUT-SHAFT, STA SHV, PG433232NUT-SHAFT, STA SHV, PG433232
-
95412972 O RING-490619O RING-490619
-
105249798 SLEEVE-SPRING, 491835SLEEVE-SPRING, 491835
-
117043395 SPRING-CLUTCH, DRIVEN, 116-185SPRING-CLUTCH, DRIVEN, 116-185
-
125412971 O RING-491838O RING-491838
-
133211129 BELT-DRIVE, MIDSIZEBELT-DRIVE, MIDSIZE
