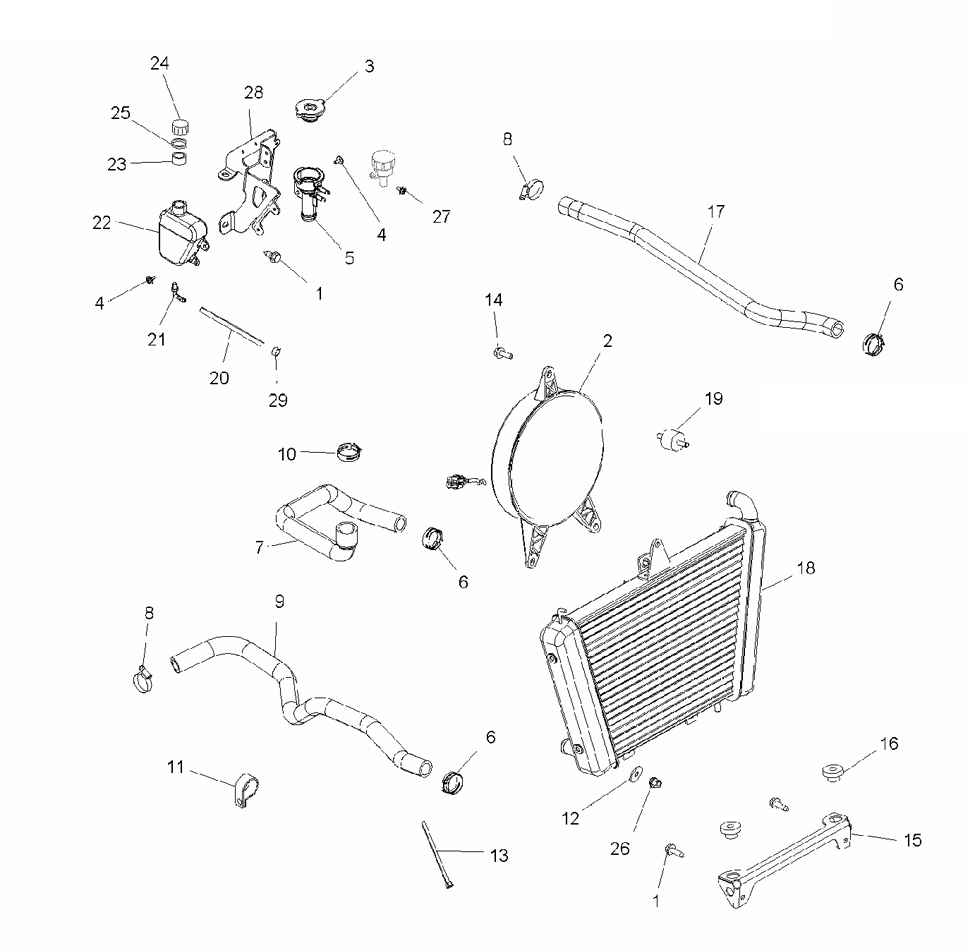

COOLING SYSTEM для Polaris SPORTSMAN 400 HO 4X4 (LH46AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
17518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
22520850 ASM-FAN/MOTOR, 190MMASM-FAN/MOTOR, 190MM
-
31240044 CAP-PRESSURE, 13 PSICAP-PRESSURE, 13 PSI
-
47512084 SCREWSCREW
-
55435196 FILLER-NECK, REMOTE, COOLANT, 2FITFILLER-NECK, REMOTE, COOLANT, 2FIT
-
67080842 CLAMP, SPRINGBAND 29/12, BLACKCLAMP, SPRINGBAND 29/12, BLACK
-
75413367 HOSE-ENGINE, FILLERHOSE-ENGINE, FILLER
-
87080696 CLAMP, HOSE, 1.25, WORM DRIVECLAMP, HOSE, 1.25, WORM DRIVE
-
95413365 HOSE-ENGINE, LOWERHOSE-ENGINE, LOWER
-
107080844 CLAMP, SPRINGBAND 35/12, BLACKCLAMP, SPRINGBAND 35/12, BLACK
-
117080807 CLAMP-HOSECLAMP-HOSE
-
127552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
137080138 CABLE TIECABLE TIE
-
147517975 BOLT-M6 HEX HDBOLT-M6 HEX HD
-
155251445-067 BRKT-RADIATOR, BLACKBRKT-RADIATOR, BLACK
-
165410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
175413366 HOSE-ENGINE, UPPERHOSE-ENGINE, UPPER
-
181240361 RADIATOR-CORE, 400HORADIATOR-CORE, 400HO
-
193110071 MOUNT, CARB, RUBBERMOUNT, CARB, RUBBER
-
208450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
217052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
225436936 TANK-SURGETANK-SURGE
-
235433774 CAP, PLUG9X(GRN), FLEX TEMPCAP, PLUG9X(GRN), FLEX TEMP
-
245430743 CAP, OVERFLOWCAP, OVERFLOW
-
255810279 GASKETGASKET
-
267542105 NUT HEXNUT HEX
-
277517560 SCREWSCREW
-
285251406-067 BRKT-RADIATOR FILL MOUNT, BLACKBRKT-RADIATOR FILL MOUNT, BLACK
-
297080003 CLAMP, HOSECLAMP, HOSE
