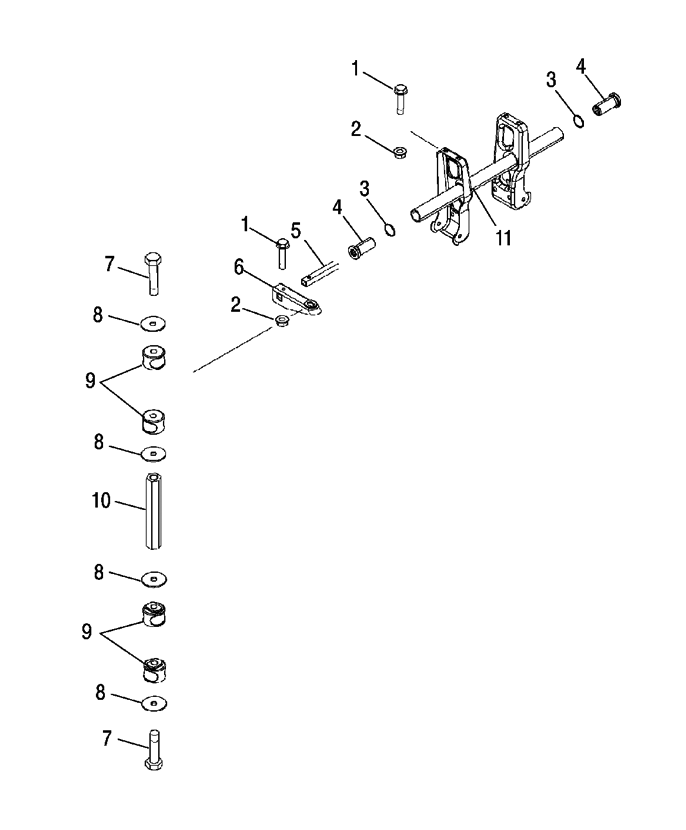

SUSPENSION - TORSION BAR для Polaris SPORTSMAN 500 HO EFI (MN50AQ) (CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
17518341 BOLT-5/16-18X1-3/4 HXFLNG GR5BOLT-5/16-18X1-3/4 HXFLNG GR5
-
27542343 NUT, FLANGENUT, FLANGE
-
37555939 WASHERWASHER
-
45434549 BUSHING-STABILIZER, TUBE, BLACKBUSHING-STABILIZER, TUBE, BLACK
-
55334114-067 BAR-STABILIZER TUBE, BLACKBAR-STABILIZER TUBE, BLACK
-
61580107-067 ARM, STAB.BAR, BLACKARM, STAB.BAR, BLACK
-
77517231 SCREWSCREW
-
87555761 WASHERWASHER
-
95432598 BUSHING, STAB.LINKBUSHING, STAB.LINK
-
105020827 ROD-LINKAGE, STABILIZERROD-LINKAGE, STABILIZER
-
111541802-067 WELD-STABILIZER SUPPORT, BLACKWELD-STABILIZER SUPPORT, BLACK
