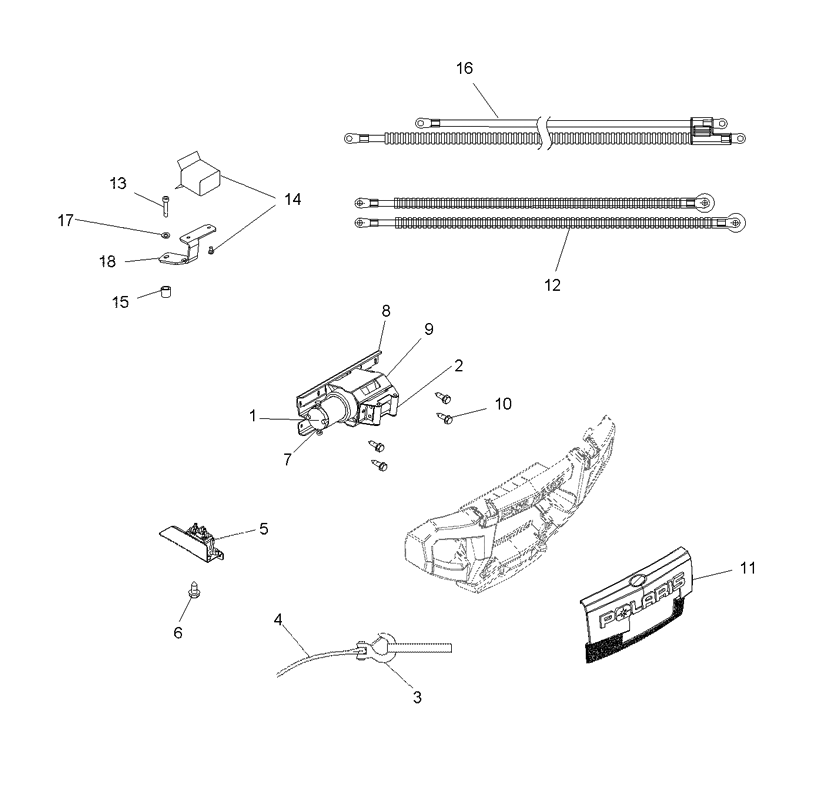

WINCH для Polaris SPORTSMAN 500 HO EFI (MN50AS) (STEALTH BLACK) - 2008 года выпуска
-
№АртикулНазвание
-
12410869 WINCH, 2500 LB., 05-06 SPTSMN (INCL. 2-4, 7-10, 12)WINCH, 2500 LB., 05-06 SPTSMN (INCL. 2-4, 7-10, 12)
-
22410935 ROLLER FAIRLEAD (INCLUDES BRACKET AND ROLLERS)ROLLER FAIRLEAD (INCLUDES BRACKET AND ROLLERS)
-
32410934 HOOKHOOK
-
42876000 CABLE, WINCH, 50 FEETCABLE, WINCH, 50 FEET
-
52876657 CONTACTOR, POLARIS WINCHCONTACTOR, POLARIS WINCH
-
67512247 BOLTBOLT
-
75631959 WINCH, 2500 LB., 05-06 SPTSMNWINCH, 2500 LB., 05-06 SPTSMN
-
85250828 PLATEPLATE
-
95250829 BRACKET-CLAMSHELL, 2500 & 3500BRACKET-CLAMSHELL, 2500 & 3500
-
107515399 SCREWSCREW
-
115436991-070 PANEL-BUMPER, WINCH, BLACKPANEL-BUMPER, WINCH, BLACK
-
122410932 HARNESS-WINCH, MOTOR/CONTACTORHARNESS-WINCH, MOTOR/CONTACTOR
-
137518780 SCR-M6X1.0X40, HX/SOC/CP-BSCR-M6X1.0X40, HX/SOC/CP-B
-
144011732 SWITCH, POLARIS WINCHSWITCH, POLARIS WINCH
-
155334334 SPACER-.277X.375X.330SPACER-.277X.375X.330
-
162410898 HARNESS-WINCH, PREWIREHARNESS-WINCH, PREWIRE
-
173280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
185250830 SWITCH, POLARIS WINCHSWITCH, POLARIS WINCH
