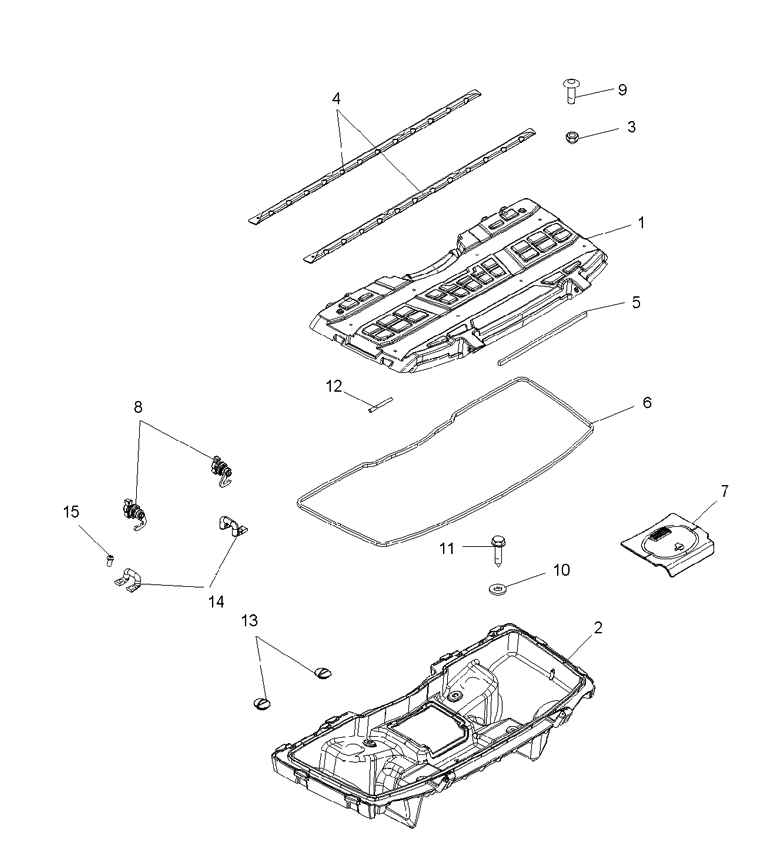

STORAGE BOX - FRONT для Polaris SPORTSMAN 500 HO (MH50AX) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
12633162 COVER ASM, FRONT, SERVICE (INCL. 5 AND WARNING DECAL)COVER ASM, FRONT, SERVICE (INCL. 5 AND WARNING DECAL)
-
22633377 KIT-ASM-LOWER BOX, FRONT (INCL. 6, 7, 13, 14, 15)KIT-ASM-LOWER BOX, FRONT (INCL. 6, 7, 13, 14, 15)
-
37542122 NUT-NYLOKNUT-NYLOK
-
45247653-418 CHANNEL-LID, FRONT, FLTBLACKWRKLCHANNEL-LID, FRONT, FLTBLACKWRKL
-
55521706 SEAL-LID/BUMPERSEAL-LID/BUMPER
-
65521693 SEALSEAL
-
75413189 COVER-RADIATOR, FRONTCOVER-RADIATOR, FRONT
-
87081421 LATCH-1/4 TURN, DETENT, LEFT HANDLATCH-1/4 TURN, DETENT, LEFT HAND
-
87081422 LATCH-1/4 TURN, DETENT, RIGHT HANDLATCH-1/4 TURN, DETENT, RIGHT HAND
-
97518427 SCR-1/4-20X1.25 TR/TX-M-GR.5SCR-1/4-20X1.25 TR/TX-M-GR.5
-
107556175 WASHER-.325X1.20X.090, FL-YWASHER-.325X1.20X.090, FL-Y
-
117517208 SCREWSCREW
-
125134576 PIN-HINGE, FRONTPIN-HINGE, FRONT
-
135412981 PLUG-COMPARTMENTPLUG-COMPARTMENT
-
145334257 LATCH-WIRELATCH-WIRE
-
157512076 SCREWSCREW
