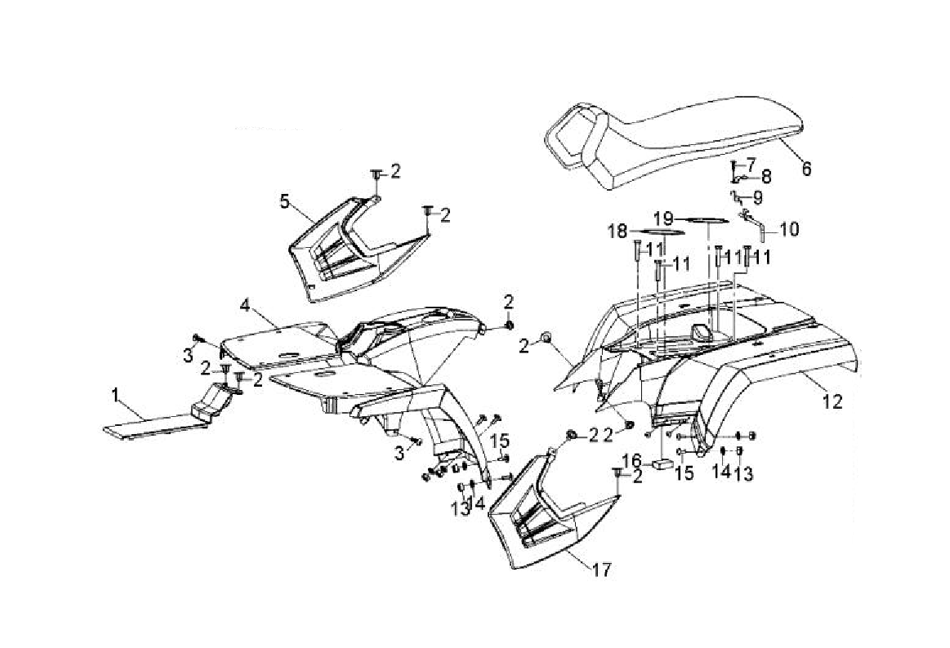

CAB - SEAT для Polaris SPORTSMAN 90 (FA09AB) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
10453714-293 COVER-FRONT,UTILITY,REDCOVER-FRONT,UTILITY,RED
-
27661076 RIVETRIVET
-
30450040 SCREW-TAPPINGSCREW-TAPPING
-
40453340-293 CAB-FRT,REDCAB-FRT,RED
-
50453343-070 PANEL-SIDE, RIGHT HAND, BLACKPANEL-SIDE, RIGHT HAND, BLACK
-
50453343-464 PANEL-SIDE, RIGHT HAND,STEALTH BLACKPANEL-SIDE, RIGHT HAND,STEALTH BLACK
-
60453344-070 ASM-SEAT, BLACK (INCL. 8,9,10)ASM-SEAT, BLACK (INCL. 8,9,10)
-
70451703 SCREW,TAPPINGSCREW,TAPPING
-
80453690 RETAINER-SEAT LATCH,OUTLAWRETAINER-SEAT LATCH,OUTLAW
-
90453689 SPRING-SEAT LATCH,OUTLAWSPRING-SEAT LATCH,OUTLAW
-
100453688 LATCH-SEAT,OUTLAWLATCH-SEAT,OUTLAW
-
110450340 BOLT-HEXBOLT-HEX
-
120453942-293 ASM-CAB,REAR,SPTSM,RED,W/DECALASM-CAB,REAR,SPTSM,RED,W/DECAL
-
130450741 NUT,LOCKNUT,LOCK
-
140450710 WASHER-PLAINWASHER-PLAIN
-
150450622 BOLT-PHILLIPSBOLT-PHILLIPS
-
160450346 FOAM,BATTERY PADFOAM,BATTERY PAD
-
170453342-070 PANEL-SIDE, LEFT HAND, BLACKPANEL-SIDE, LEFT HAND, BLACK
-
180453686 O'RINGO'RING
-
190453687 O'RINGO'RING
