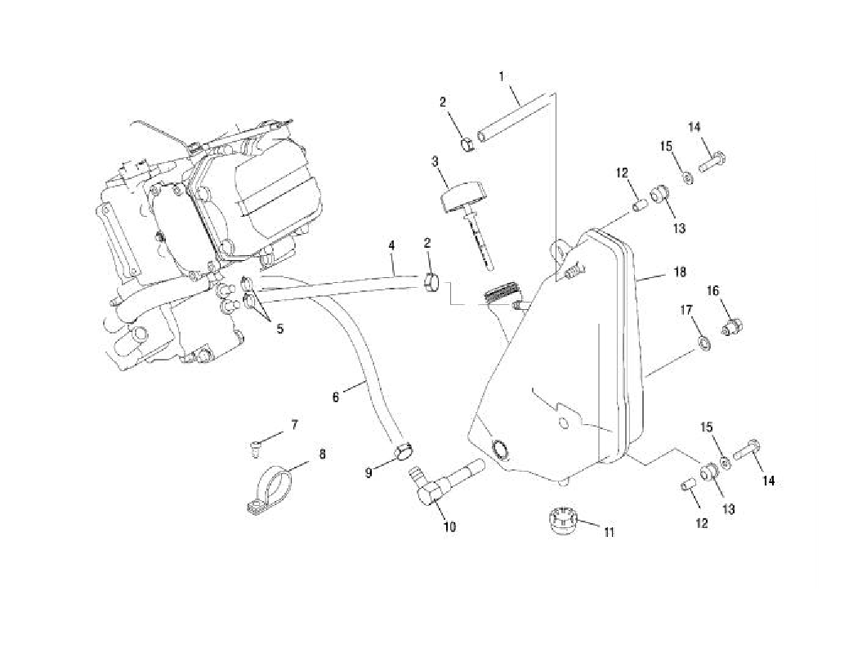

OIL TANK для Polaris SPORTSMAN TOURING 500 EFI (DN50AW) (PEARL WHITE) - 2008 года выпуска
-
№АртикулНазвание
-
15413001 BREATHER-LINE-122 CM,SLITBREATHER-LINE-122 CM,SLIT
-
27080699 CLAMP,HOSECLAMP,HOSE
-
35434574 DIPSTICK-OIL TANKDIPSTICK-OIL TANK
-
48450073-600 LINE, OILLINE, OIL
-
57080474 CLAMP, HOSECLAMP, HOSE
-
68450096-100 LINE, OILLINE, OIL
-
77512024 SCREWSCREW
-
87080693 CLAMP,HOSE,NYLONCLAMP,HOSE,NYLON
-
97081026 CLAMP-HOSE,SPRING .81CLAMP-HOSE,SPRING .81
-
107052326 SCREEN-OIL FILTER,90°SCREEN-OIL FILTER,90°
-
115412507 GROMMETGROMMET
-
125333204 BUSHING,MTG.BUSHING,MTG.
-
135410828 GROMMET,MTG,RESERVOIRGROMMET,MTG,RESERVOIR
-
147512242 SCREWSCREW
-
157558301 WASHER, FLATWASHER, FLAT
-
167051524 PLUGPLUG
-
175850135 WASHERWASHER
-
181261653 WELDMENT-OIL TANKWELDMENT-OIL TANK
