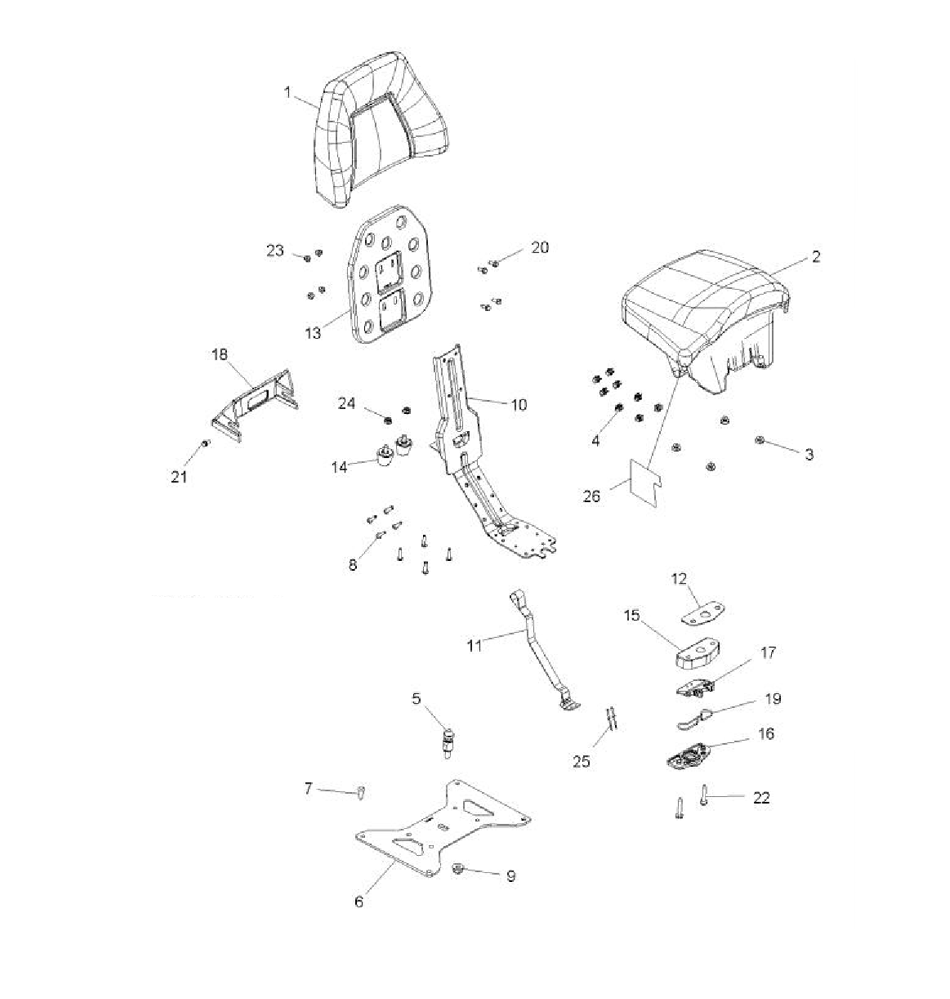

SEAT - PASSENGER - BOTTOM - BACK для Polaris SPORTSMAN TOURING 800 EFI (DN76AG) (BOARDWALK BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
12684091 ASM-SEAT,PASSENGER,BACK (INCL. COVER)ASM-SEAT,PASSENGER,BACK (INCL. COVER)
-
12684113 ASM-SEAT COVER,PASS,BACKASM-SEAT COVER,PASS,BACK
-
22684118-070 ASM-SEAT,PASS,BOTTOM, BLACKASM-SEAT,PASS,BOTTOM, BLACK
-
22684112-070 COVERING-SEAT, BLACKCOVERING-SEAT, BLACK
-
35412067 BUMPER-RUBBERBUMPER-RUBBER
-
47081304 CLIP-EXPANSION 6MMCLIP-EXPANSION 6MM
-
55136319 PLUNGER-LATCHPLUNGER-LATCH
-
65251350-067 PLATE-SEAT PLUNGER, BLACKPLATE-SEAT PLUNGER, BLACK
-
77518280 SCR-1/4-20X.75,TR/TX-MSCR-1/4-20X.75,TR/TX-M
-
87518535 BOLT-M6X1.0X25,TORX,PNHD, BLACKBOLT-M6X1.0X25,TORX,PNHD, BLACK
-
97542343 NUT,FLANGENUT,FLANGE
-
101016116-067 WELD-SEAT BACK,SUPPORT, BLACKWELD-SEAT BACK,SUPPORT, BLACK
-
112684130 ASM-STRAP,SEAT LATCHASM-STRAP,SEAT LATCH
-
125251162 PLATE-LATCH,SEATPLATE-LATCH,SEAT
-
135251351-329 PLATE-SEAT BACK,SUPPORT,E-COATPLATE-SEAT BACK,SUPPORT,E-COAT
-
145413358 BUMPER-RUBBER,TAPEREDBUMPER-RUBBER,TAPERED
-
155437119 BODY-LATCH,SEATBODY-LATCH,SEAT
-
165437120 CAP-LATCH,SEATCAP-LATCH,SEAT
-
175437121 LEVER-LATCH,SEATLEVER-LATCH,SEAT
-
185437296 COVER-PASS SEAT SUPPORTCOVER-PASS SEAT SUPPORT
-
197081466 SPRING-LATCH,SEATSPRING-LATCH,SEAT
-
207512253 SCREWSCREW
-
217517417 SCREWSCREW
-
227518418 SCR-1/4-20X1.50-HX/TAP-R,MAGSCR-1/4-20X1.50-HX/TAP-R,MAG
-
237542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
247542343 NUT,FLANGENUT,FLANGE
-
257621220 RIVET-POPRIVET-POP
-
265813323 FOIL-SEAT BASE,PASSENGERFOIL-SEAT BASE,PASSENGER
