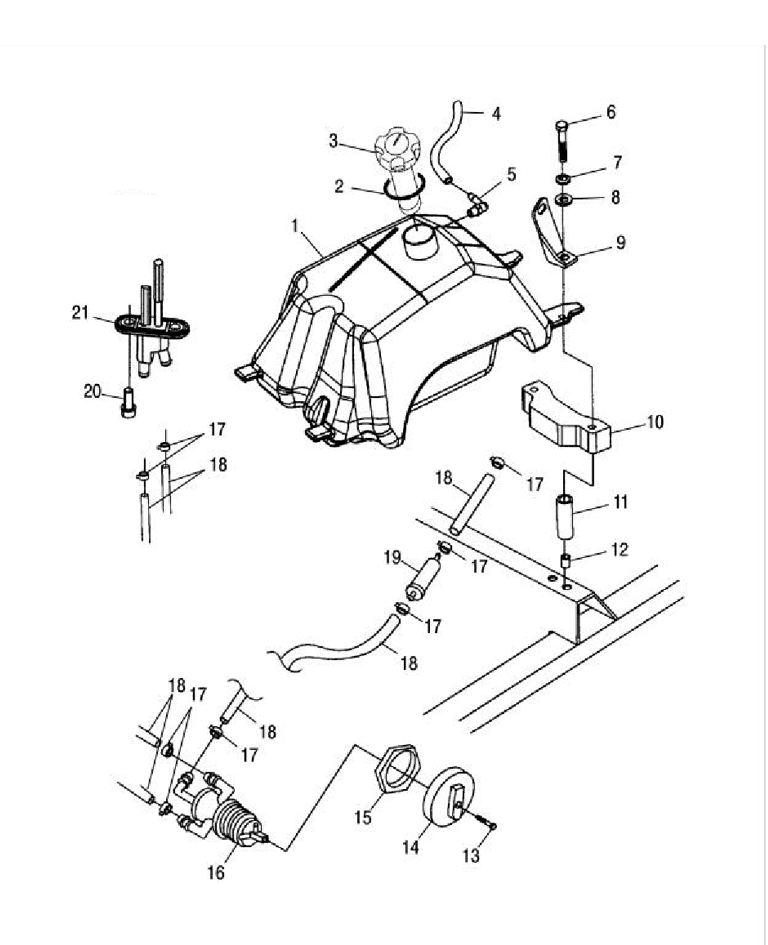

FUEL TANK для Polaris TRAIL BOSS 330 (CA32AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
12520409 ASM-FUEL TANK (INCL. 5,20,21)ASM-FUEL TANK (INCL. 5,20,21)
-
25812123 GASKETGASKET
-
32873626 KIT,GAUGE,FUELKIT,GAUGE,FUEL
-
48360009-600 LINE,FUEL,1/8 ID,600 CM.LINE,FUEL,1/8 ID,600 CM.
-
55431053 VENT, TANKVENT, TANK
-
67517451 BOLTBOLT
-
77552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87555859 WASHER, FLATWASHER, FLAT
-
95247184 BRKT-FUEL COVER MT LEFT HAND,PLTDBRKT-FUEL COVER MT LEFT HAND,PLTD
-
95247185 BRKT-FUEL COVER MT RIGHT HAND,PLTDBRKT-FUEL COVER MT RIGHT HAND,PLTD
-
105811951 SEAL,FOAM 2'' THKSEAL,FOAM 2'' THK
-
115332457 SPACERSPACER
-
127547069 NUTSERT,HEXNUTSERT,HEX
-
137517505 SCREWSCREW
-
145432559 KNOB,FUEL VALVEKNOB,FUEL VALVE
-
155432733 NUT,FUEL VALVENUT,FUEL VALVE
-
167052161 VALVE,3-WAYVALVE,3-WAY
-
177080003 CLAMP,HOSECLAMP,HOSE
-
188450117-250 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
192530009 FILTER,SMALL,IN-LINEFILTER,SMALL,IN-LINE
-
207515136 SCREWSCREW
-
217052364 FITTING-FUEL,DUAL OUTLETFITTING-FUEL,DUAL OUTLET
