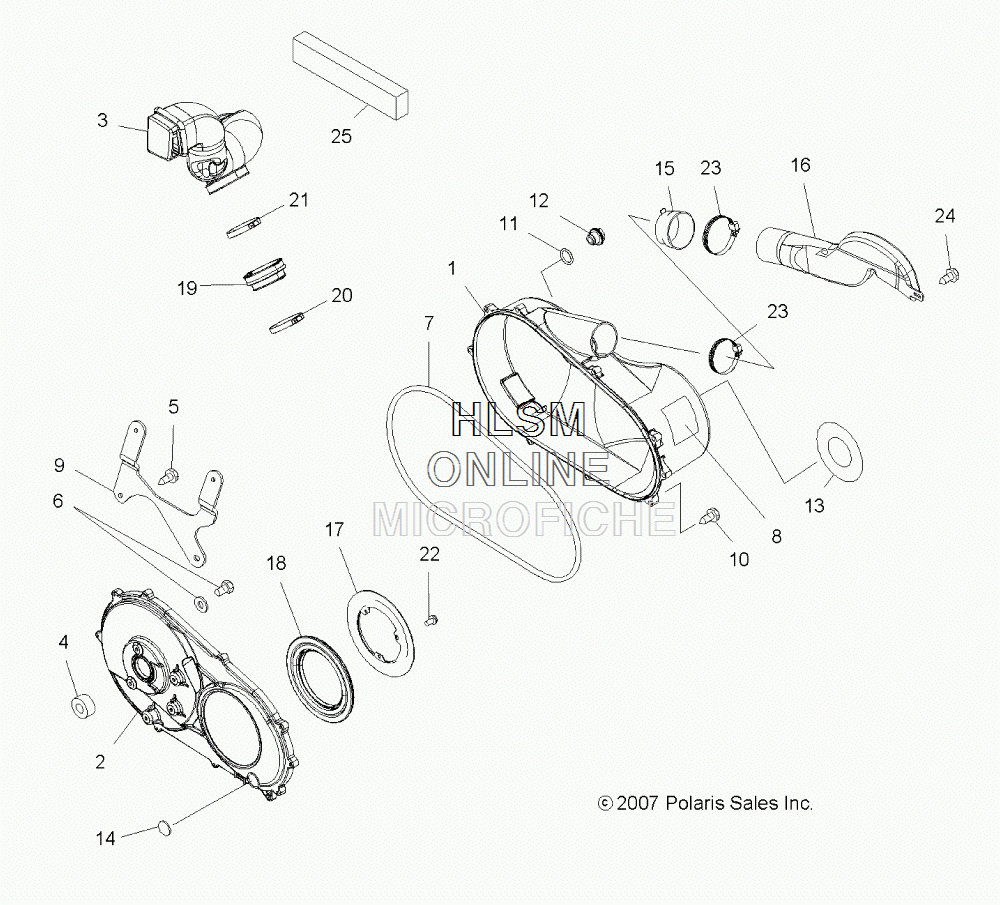

CLUTCH COVER для Polaris TRAILBLAZER 330 (BA32AA) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
12633262 ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,11,12)ASM., CLUTCH COVER, OUTER (INCL. OUTER COVER,11,12)
-
22202438 KIT, INNER CLUTCH COVER (INCL. 7,10,18)KIT, INNER CLUTCH COVER (INCL. 7,10,18)
-
35436951 DUCT, INLETDUCT, INLET
-
45410489 SEAL, COVER CASESEAL, COVER CASE
-
57517386 SCREWSCREW
-
67510000 BOLT AND WASHERBOLT AND WASHER
-
75521738 SEAL, CLUTCH COVER, OUTERSEAL, CLUTCH COVER, OUTER
-
87172563 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
95247524-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
107512094 SCREWSCREW
-
115410542 O-RINGO-RING
-
125434264 PLUG, DRAINPLUG, DRAIN
-
137172746 DECAL, AUTOMATIC TRANSMISSIONDECAL, AUTOMATIC TRANSMISSION
-
145411795 STOPPER, CLUTCH COVER, INNERSTOPPER, CLUTCH COVER, INNER
-
155412636 BOOT, DUCTBOOT, DUCT
-
165434213 DUCT, CLUTCH, AIR OUTLETDUCT, CLUTCH, AIR OUTLET
-
175242046 BRACKET, CLUTCH SEALBRACKET, CLUTCH SEAL
-
185412637 SEAL, COVER, CASESEAL, COVER, CASE
-
195411721 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
207080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
217080909 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
223084205 SCREW AND WASHERSCREW AND WASHER
-
237081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
247517386 SCREWSCREW
-
255812138 FOAM, PANEL, LEFT HANDFOAM, PANEL, LEFT HAND
