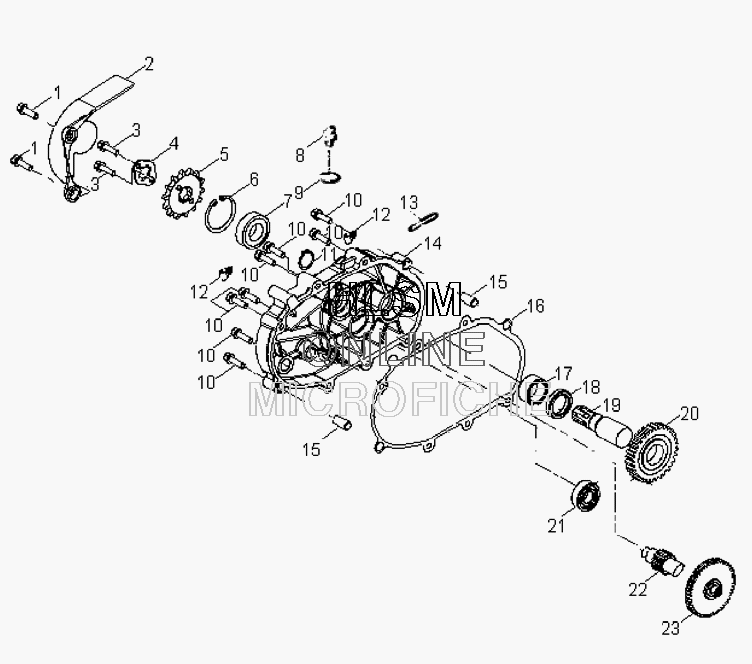

TRANSMISSION - INTERNALS для Polaris OUTLAW 50 (A09KA05AD) (PINK) - 2009 года выпуска
-
№АртикулНазвание
-
10453648 BOLTBOLT
-
20453650 ASM-COVER, SPROCKET, TRANSASM-COVER, SPROCKET, TRANS
-
30453981 BOLT-TRANSMISSIONBOLT-TRANSMISSION
-
40453850 BRACKET-SPROCKET.PRED 50BRACKET-SPROCKET.PRED 50
-
50453851 SPROCKET-DRIVE, PRED 50SPROCKET-DRIVE, PRED 50
-
60450162 CIRCLIP-INTERNALCIRCLIP-INTERNAL
-
70453978 BEARING-BALLBEARING-BALL
-
80451813 PLUG-OILPLUG-OIL
-
90453506 O'RING-TRANSMISSIONO'RING-TRANSMISSION
-
100452331 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
110452339 CLIP RETAINERCLIP RETAINER
-
120453585 RETAINER-CYLINDER HEADRETAINER-CYLINDER HEAD
-
130453515-170 HOSE-VENT, TRANSMISSION, 170HOSE-VENT, TRANSMISSION, 170
-
140453852 COVER-TRANSMISSION, PRED 50COVER-TRANSMISSION, PRED 50
-
150450142 PIN-DOWELPIN-DOWEL
-
160453646 GASKET-COVER, TRANSMISSIONGASKET-COVER, TRANSMISSION
-
170450258 BEARINGBEARING
-
180450259 SEAL-OILSEAL-OIL
-
190453643 SHAFT-DRIVE, OUTLAWSHAFT-DRIVE, OUTLAW
-
200453854 GEAR-TRANSMISSION, PRED 50GEAR-TRANSMISSION, PRED 50
-
210452156 BEARING-MAIN TRNSMSN SHAFTBEARING-MAIN TRNSMSN SHAFT
-
220453855 SHAFT-COUNTER, TRANS, PRED 50SHAFT-COUNTER, TRANS, PRED 50
-
230453856 GEAR-COUNTER, TRANS, PRED 50GEAR-COUNTER, TRANS, PRED 50
