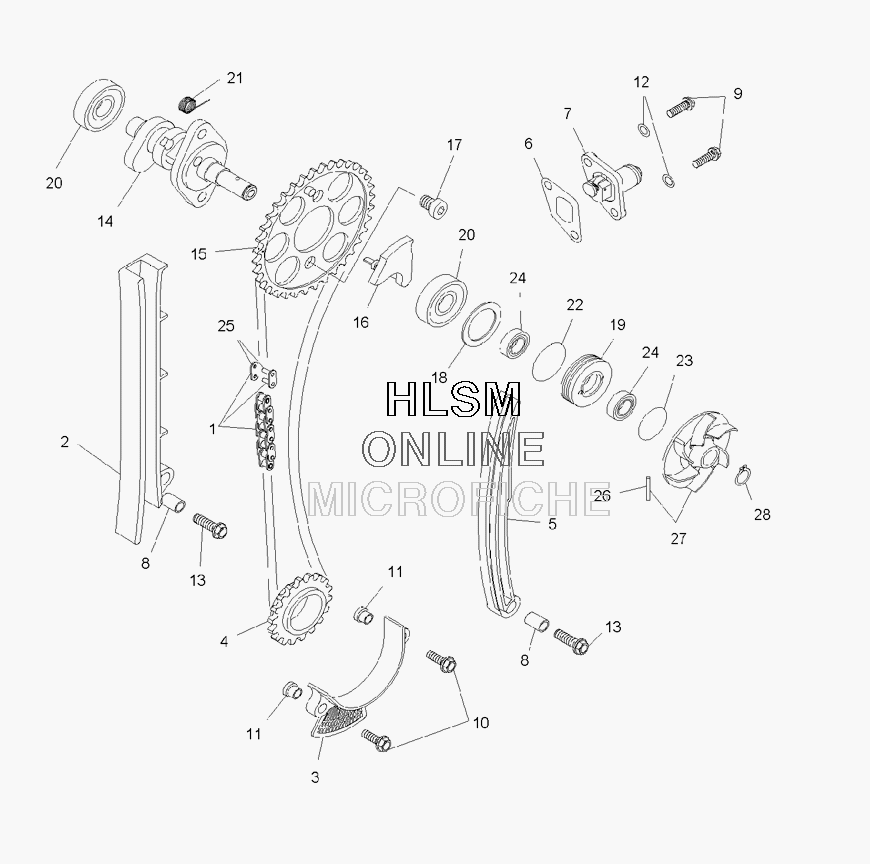

TIMING SYSTEM для Polaris OUTLAW 525 S (A09GJ52AA) - 2009 года выпуска
-
№АртикулНазвание
-
13222158 CHAIN-CAM DRIVE, 96LINKS 525 ATVCHAIN-CAM DRIVE, 96LINKS 525 ATV
-
23021845 GUIDE-CAM TIMING CHAIN 525 ATVGUIDE-CAM TIMING CHAIN 525 ATV
-
33021847 GUIDE-CAM CHAIN, LOWER 525 ATVGUIDE-CAM CHAIN, LOWER 525 ATV
-
43222157 SPROCKET-CAM CHAIN DRIVE 18TSPROCKET-CAM CHAIN DRIVE 18T
-
51203519 TENSIONER-CAM CHAINTENSIONER-CAM CHAIN
-
65813173 GASKET-CAM CHAIN TENSIONERGASKET-CAM CHAIN TENSIONER
-
71203522 ASM-CAM CHAIN TENSIONER, 525 ATVASM-CAM CHAIN TENSIONER, 525 ATV
-
85135837 BUSHING-SPACER 6.1X8.2X13.1 MMBUSHING-SPACER 6.1X8.2X13.1 MM
-
97518723 SCR-M6X20 HX/FL 8 MM HEADSCR-M6X20 HX/FL 8 MM HEAD
-
107518732 SCR-M5X16 HX/FL 8 MM HEADSCR-M5X16 HX/FL 8 MM HEAD
-
115135843 BUSHING-SPACER 5.2X7X10X7.7 MMBUSHING-SPACER 5.2X7X10X7.7 MM
-
127556415 WASHER-COPPER DIN7603 6X10X1 MMWASHER-COPPER DIN7603 6X10X1 MM
-
137518736 SCR-M6X25 HX/FL 8 MM HEADSCR-M6X25 HX/FL 8 MM HEAD
-
143021848 CAMSHAFT-590/5521, 525 ATVCAMSHAFT-590/5521, 525 ATV
-
153222159 SPROCKET-CAMSHAFTDRIVEN 525 ATVSPROCKET-CAMSHAFTDRIVEN 525 ATV
-
163021849 SHAFT-AUTODECOMPRESSION 525 ATVSHAFT-AUTODECOMPRESSION 525 ATV
-
177518741 SCR-M8X10 SOCHD DIN7984SCR-M8X10 SOCHD DIN7984
-
187556414 WASHER-26.7X34X1.3 MMWASHER-26.7X34X1.3 MM
-
195135846 CARRIER-WATER PUMP SEAL 525 ATVCARRIER-WATER PUMP SEAL 525 ATV
-
203514581 BEARING-BALL DPDRV 6201BEARING-BALL DPDRV 6201
-
217043303 SPRING-AUTO DECOM 525 ATVSPRING-AUTO DECOM 525 ATV
-
225413252 O-RING, 29.1X1.6MM NBR70O-RING, 29.1X1.6MM NBR70
-
235413251 O-RING 25.12X1.78MM NBR70O-RING 25.12X1.78MM NBR70
-
245413306 SEAL-SHAFT 10X18X4 VITONSEAL-SHAFT 10X18X4 VITON
-
253222167 LINK-CONNECTOR, CAM CHAINLINK-CONNECTOR, CAM CHAIN
-
267661935 NEEDLE-ROLLER DIN5402 3X17.8 MMNEEDLE-ROLLER DIN5402 3X17.8 MM
-
275437029 IMPELLER-WATERPUMP 525 ATVIMPELLER-WATERPUMP 525 ATV
-
287710599 RING-SNAP, DIN0471 10X1 MMRING-SNAP, DIN0471 10X1 MM
