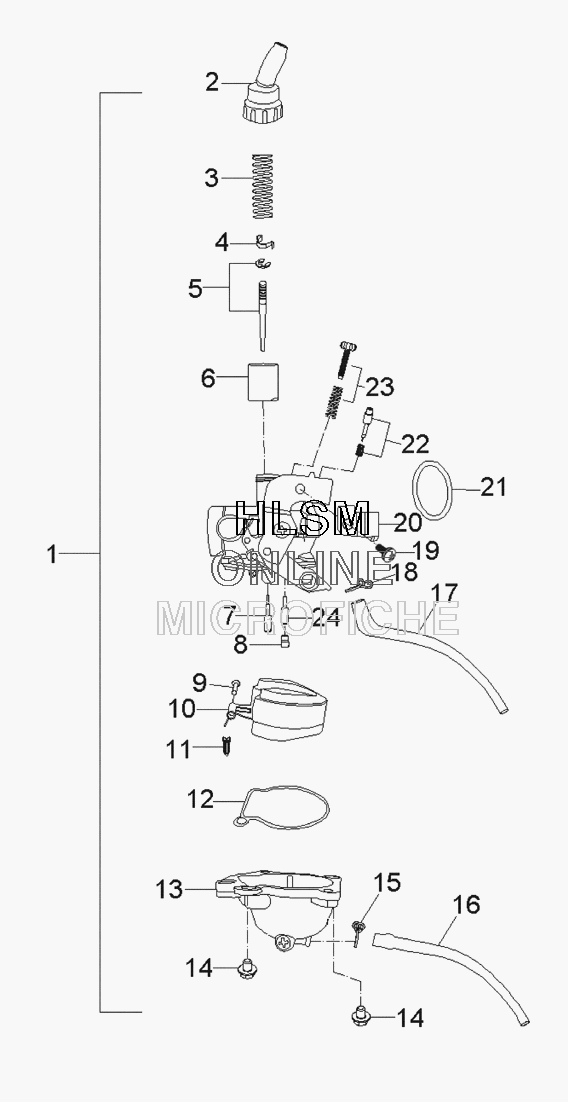

CARBURETOR для Polaris OUTLAW 90 (A09KA9AB) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
10454189 ASM-CARBURETOR 90 (INCL ALL)ASM-CARBURETOR 90 (INCL ALL)
-
20454190 ASM-CAP, FUELASM-CAP, FUEL
-
30454191 SPRING-CARBSPRING-CARB
-
40454192 CLIP-NEEDLE, CARBCLIP-NEEDLE, CARB
-
50454193 ASM-JET, NEEDLEASM-JET, NEEDLE
-
60454194 THROTTLE-VALVE, 90THROTTLE-VALVE, 90
-
70454195 JET-PILOT, CARB, 90JET-PILOT, CARB, 90
-
80454196 JET-MAIN, CARB, 90JET-MAIN, CARB, 90
-
90454197 SCREWSCREW
-
100454198 SCREWSCREW
-
110454199 VALVE-FLOAT, CARB 90VALVE-FLOAT, CARB 90
-
120454200 SEAL-FLOAT, CARB, 90SEAL-FLOAT, CARB, 90
-
130454201 BOWLBOWL
-
140453629 ASM-SCREW, CARBASM-SCREW, CARB
-
150452814 CLIP-HOSE, VACUUMCLIP-HOSE, VACUUM
-
160454202 HOSEHOSE
-
170453625 HOSE-CARBHOSE-CARB
-
180453623 CLAMP-HOSE, CARBCLAMP-HOSE, CARB
-
190452541 SCREW ASM.SCREW ASM.
-
200454203 CLIPCLIP
-
210453626 O'RING-CARBO'RING-CARB
-
220454204 ASM-SCREW, CARB, 90ASM-SCREW, CARB, 90
-
230454205 ASM-SCREW, CARB, 90ASM-SCREW, CARB, 90
-
240454206 VALVE-NEEDLE, CARB, 90VALVE-NEEDLE, CARB, 90
