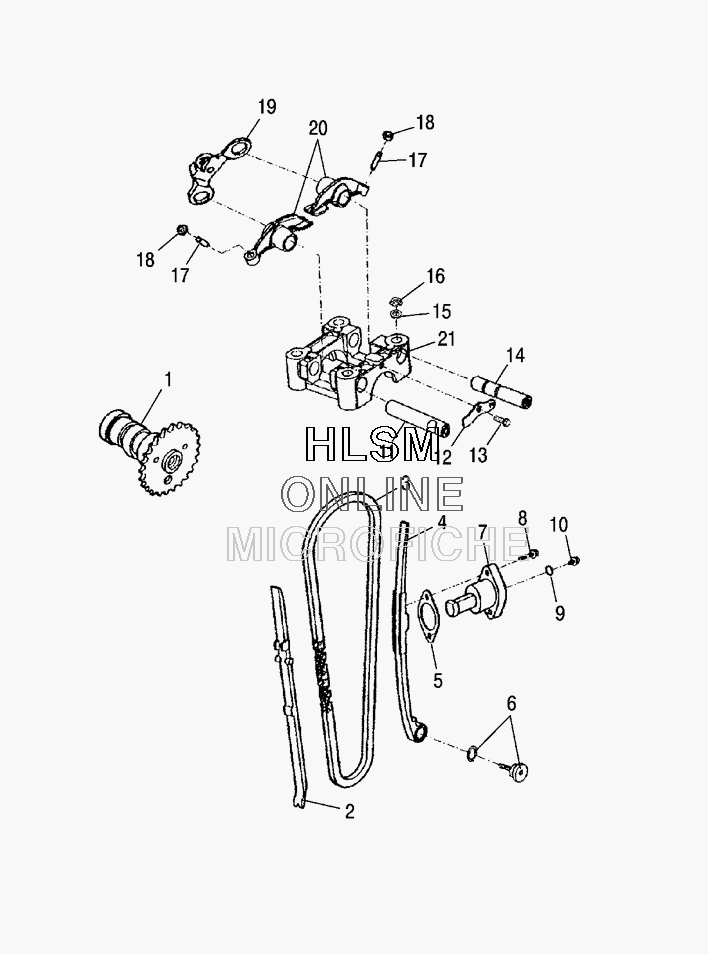

CAMSHAFT W/ VALVE ASSY. для Polaris PHOENIX 200 (A09PB250AD) (PINK) - 2009 года выпуска
-
№АртикулНазвание
-
10452406 ASM-CAM SHAFTASM-CAM SHAFT
-
20452419 GUIDE-CAM CHAIN, LEFT HANDGUIDE-CAM CHAIN, LEFT HAND
-
30452407 CHAIN-CAMCHAIN-CAM
-
40452415 GUIDE-CAM CHAIN, RIGHT HANDGUIDE-CAM CHAIN, RIGHT HAND
-
50452417 GASKET-TENSIONERGASKET-TENSIONER
-
60452418 PIVOT-GUIDEPIVOT-GUIDE
-
70452416 TENSIONERTENSIONER
-
80452420 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
90452382 O-RINGO-RING
-
100452421 SCREWSCREW
-
110452411 SHAFT-EXHAUST, ROCKER ARMSHAFT-EXHAUST, ROCKER ARM
-
120452412 PLATE-ROCKER ARM SHAFTPLATE-ROCKER ARM SHAFT
-
130452413 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
140452410 SHAFT, INTAKE, ROCKER ARMSHAFT, INTAKE, ROCKER ARM
-
150452425 WASHERWASHER
-
160450268 NUT-FLANGENUT-FLANGE
-
170452423 SCREW-TAPPET ADJ.SCREW-TAPPET ADJ.
-
180452424 NUT-TAPPET ADJ.NUT-TAPPET ADJ.
-
190452414 ASM-DECOMP. RELEASEASM-DECOMP. RELEASE
-
200452409 ARM-VALVE, ROCKERARM-VALVE, ROCKER
-
210452408 BRKT-CAM SHAFTBRKT-CAM SHAFT
