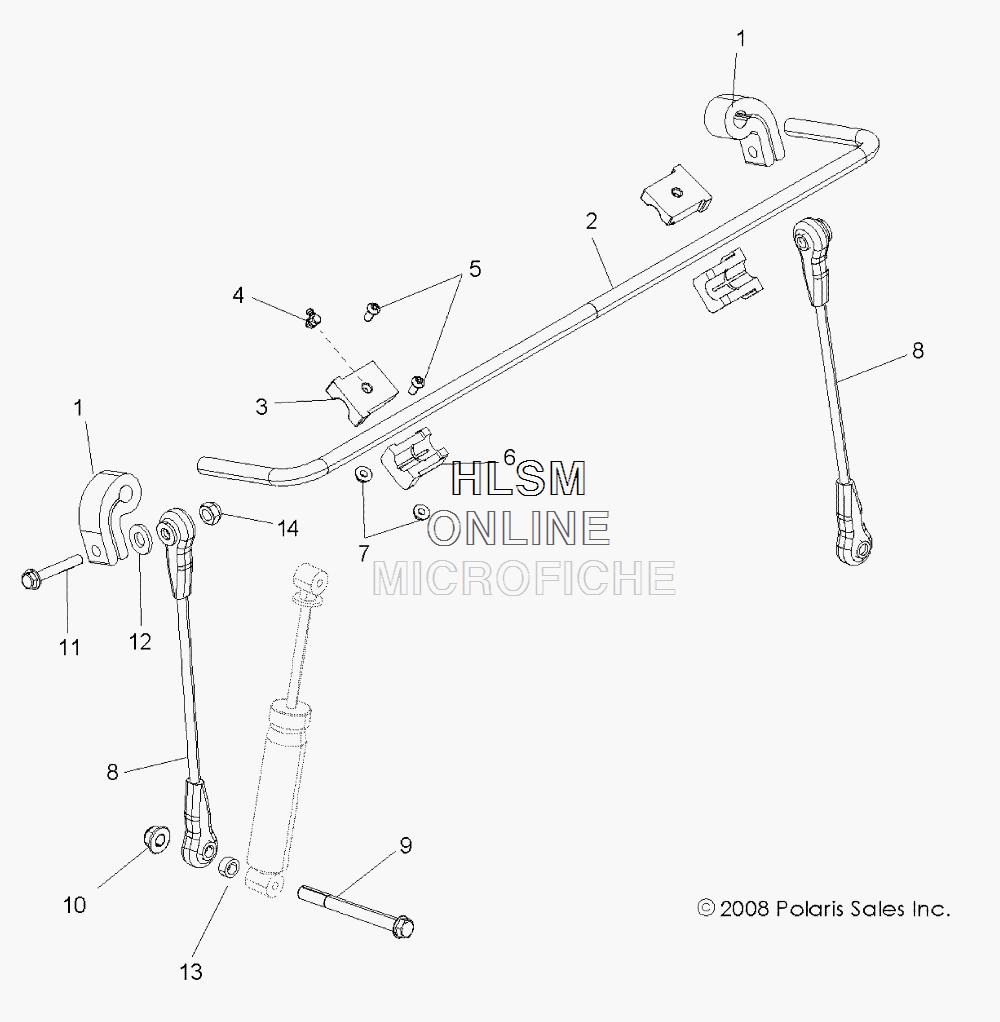

STABILIZER BAR- FRONT для Polaris RZR 800 EFI NEW BREAK UP [R09VH76AH] - 2009 года выпуска
-
№АртикулНазвание
-
15135395 CLAMP, STABILIZER BAR, FRONTCLAMP, STABILIZER BAR, FRONT
-
25334947-329 BAR, STABILIZER, FRONT, BLACKBAR, STABILIZER, FRONT, BLACK
-
35436513 BUSHING, SWAY BARBUSHING, SWAY BAR
-
47080438 FITTING, LUBRICATING, 45 DEGREEFITTING, LUBRICATING, 45 DEGREE
-
57518656 BOLTBOLT
-
65436480 BUSHING, SWAY BARBUSHING, SWAY BAR
-
77547339 NUT, FLANGEDNUT, FLANGED
-
81521115 ASM., LINKAGE, SWAY BARASM., LINKAGE, SWAY BAR
-
97518466 BOLTBOLT
-
107547313 NUT, FLANGENUT, FLANGE
-
117518474 BOLTBOLT
-
127555806 WASHER, FLATWASHER, FLAT
-
135334945 SPACERSPACER
-
147547385 NUTNUT
