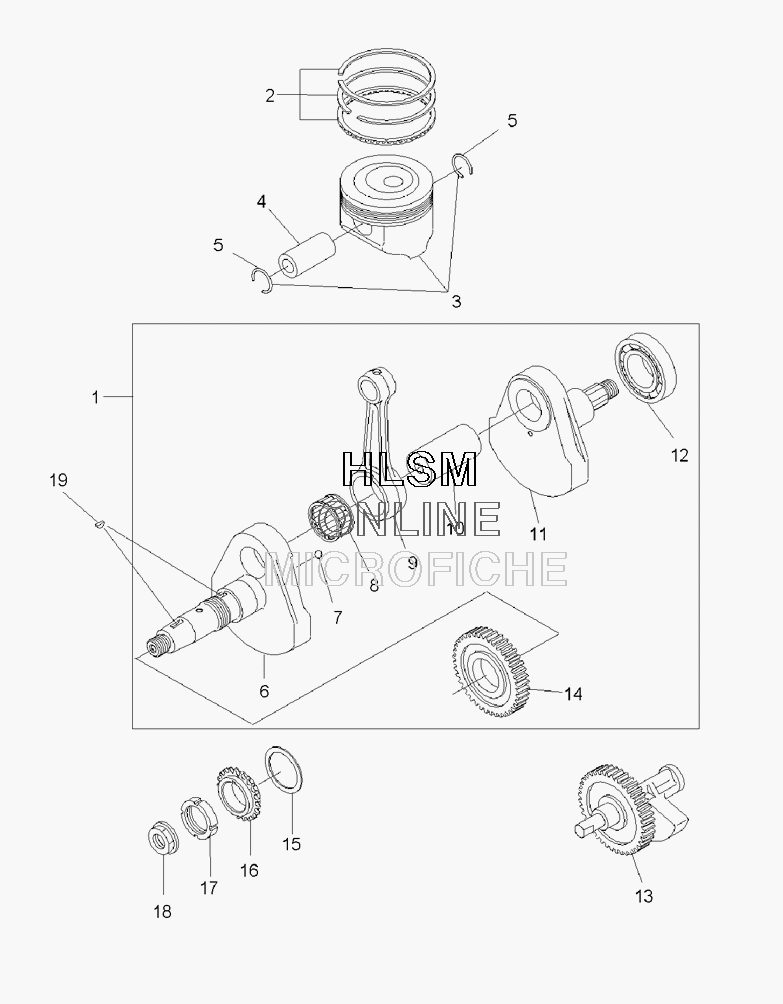

CRANKSHAFT W/ PISTON для Polaris SPORTSMAN 300 4X4 (A09LH27AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13089807 ASM-CRANKSHAFT (INCL. 6-12,14)ASM-CRANKSHAFT (INCL. 6-12,14)
-
23089822 RING-PISTON SET, STDRING-PISTON SET, STD
-
23089823 RING-PISTON SET,0.25 O/SRING-PISTON SET,0.25 O/S
-
23089824 RING-PISTON SET,0.50 O/SRING-PISTON SET,0.50 O/S
-
33089818 PISTON-SET,STD (INCL. 5)PISTON-SET,STD (INCL. 5)
-
33089819 PISTON-SET,0.25 O/S (INCL. 5)PISTON-SET,0.25 O/S (INCL. 5)
-
33089820 PISTON-SET,0.50 O/S (INCL. 5)PISTON-SET,0.50 O/S (INCL. 5)
-
43089821 PIN-PISTONPIN-PISTON
-
53084167 CLIP,PISTON PINCLIP,PISTON PIN
-
63089808 CRANKSHAFT-1CRANKSHAFT-1
-
73085024 BALL, STEELBALL, STEEL
-
83089812 BEARING-LARGE ENDBEARING-LARGE END
-
93089811 ROD-CONNECTINGROD-CONNECTING
-
103089810 PIN-CRANK COMPLETEPIN-CRANK COMPLETE
-
113089809 CRANKSHAFT-2CRANKSHAFT-2
-
123089814 BEARING-BALLBEARING-BALL
-
133089815 SHAFT-BALANCER COMPLETESHAFT-BALANCER COMPLETE
-
143089813 GEAR-BALANCER 1GEAR-BALANCER 1
-
153089825 SPACERSPACER
-
153089826 SPACERSPACER
-
153089827 SPACERSPACER
-
163089816 SPROCKET-1SPROCKET-1
-
173085528 NUT,SLITNUT,SLIT
-
183089991 NUTNUT
-
193081543 KEY WOODRUFFKEY WOODRUFF
