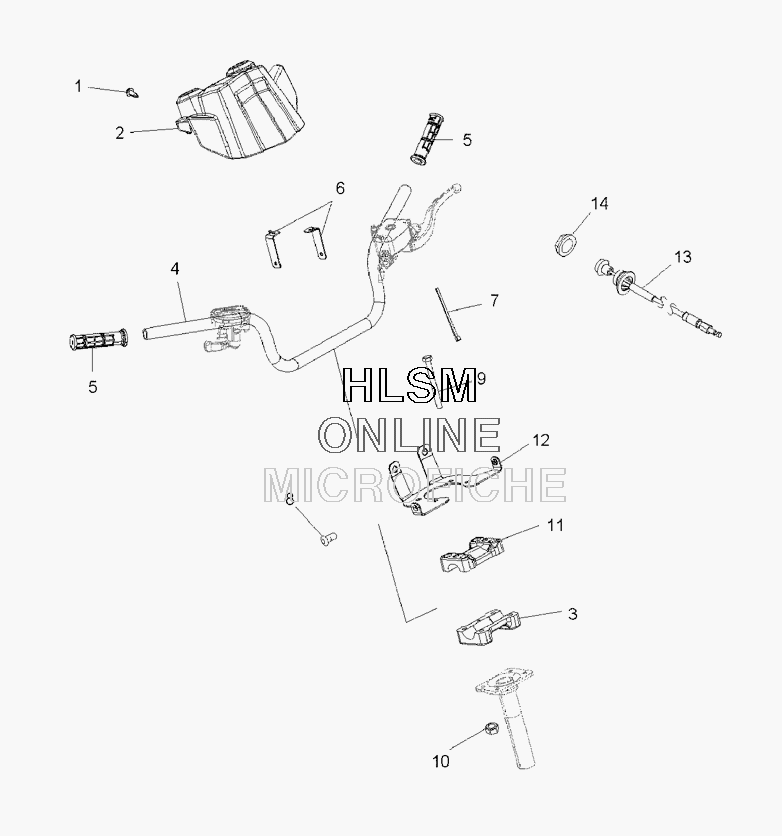

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
17661855 RIVET-TUFLOK,.315-.325X.787 (50RIVET-TUFLOK,.315-.325X.787 (50
-
25435706-070 POD-INSTRUMENT, BLACKPOD-INSTRUMENT, BLACK
-
35631973 BLOCK-HANDLEBAR, .89 IDBLOCK-HANDLEBAR, .89 ID
-
45244581-067 TUBE,HNDLBR, BLACKTUBE,HNDLBR, BLACK
-
55413578-070 GRIP-HANDLEBAR, BLACKGRIP-HANDLEBAR, BLACK
-
65250156 MOUNT-POD,SUPPORTMOUNT-POD,SUPPORT
-
77080138 CABLE TIECABLE TIE
-
87512024 SCREWSCREW
-
97515189 SCREWSCREW
-
107542122 NUT-NYLOKNUT-NYLOK
-
115631972 BLOCK-HANDLEBAR, PEG,89 IDBLOCK-HANDLEBAR, PEG,89 ID
-
125250697-329 BRKT-POD,MAIN,ECOATBRKT-POD,MAIN,ECOAT
-
137081171 CABLE-CHOKE,FRICTION,40"CABLE-CHOKE,FRICTION,40"
-
147080922 NUT,CHOKE,M24X1.5 THD,M29 HEXNUT,CHOKE,M24X1.5 THD,M29 HEX
