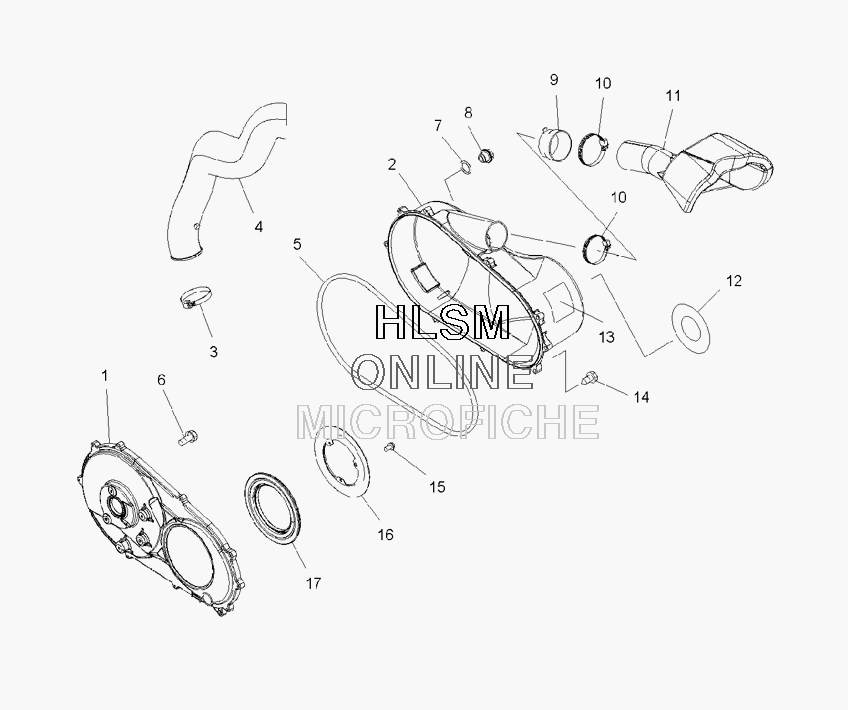

CLUTCH COVER для Polaris SPORTSMAN 500 HO (A09MH50AX) (GREEN) - 2009 года выпуска
-
№АртикулНазвание
-
12201954 KIT-INNER CLUTCH CVR,SVC (INCL. 5,14,17)KIT-INNER CLUTCH CVR,SVC (INCL. 5,14,17)
-
22633262 ASM-COVER,CLUTCH,OUTER,HV (INCL. OUTER COVER 7,8)ASM-COVER,CLUTCH,OUTER,HV (INCL. OUTER COVER 7,8)
-
37080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45436958 DUCT-AIR INLET,CLUTCHDUCT-AIR INLET,CLUTCH
-
55521738 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
67517599 ASM.,BOLT /WASHERIGHT HAND88ASM.,BOLT /WASHERIGHT HAND88
-
75410542 O RINGO RING
-
85434264 PLUG-DRAINPLUG-DRAIN
-
95412636 BOOT-DUCT,HI-FLOWBOOT-DUCT,HI-FLOW
-
107081279 CLAMP-BAND,NARROW 70-90MMCLAMP-BAND,NARROW 70-90MM
-
115436952 DUCT-CLUTCH OUTLETDUCT-CLUTCH OUTLET
-
127172746 DECAL-AUTOMATIC TRANSMISSIONDECAL-AUTOMATIC TRANSMISSION
-
137172563 DECALDECAL
-
147512094 SCREWSCREW
-
153084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
-
165242046 BRKT-CLUTCH SEALBRKT-CLUTCH SEAL
-
175412637 SEAL-COVER CASE,ENGINESEAL-COVER CASE,ENGINE
