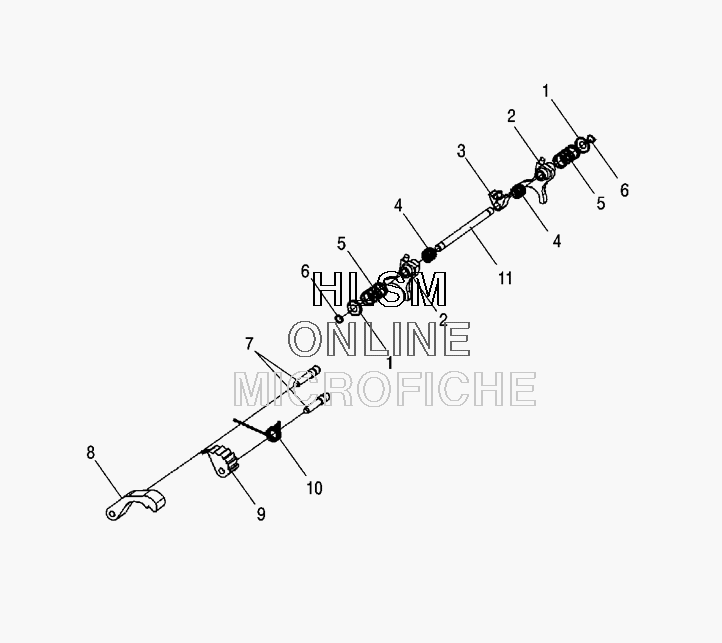

SHIFT FORKS для Polaris SPORTSMAN 500 HO (A09MH50AZ) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
-1332626 ASM-GEARCASE,DRUMSHIFT,NO PLASM-GEARCASE,DRUMSHIFT,NO PL
-
13234091 WASHER-CUPWASHER-CUP
-
23234077 SHIFT FORKSHIFT FORK
-
33234073 COLLAR-SHIFTCOLLAR-SHIFT
-
43234089 SPRING-COMPRESSIONSPRING-COMPRESSION
-
53234078 SPRING-COMPRESSIONSPRING-COMPRESSION
-
63234090 RING-RETAININGRING-RETAINING
-
73233432 PIN,DOWELPIN,DOWEL
-
83233433 SHOE,CHAIN TENSIONERSHOE,CHAIN TENSIONER
-
93233434 CAM,CHAIN TENSIONERCAM,CHAIN TENSIONER
-
103233431 SPRING,TORSIONSPRING,TORSION
-
113234079 RAIL-SHIFT SHAFTRAIL-SHIFT SHAFT
