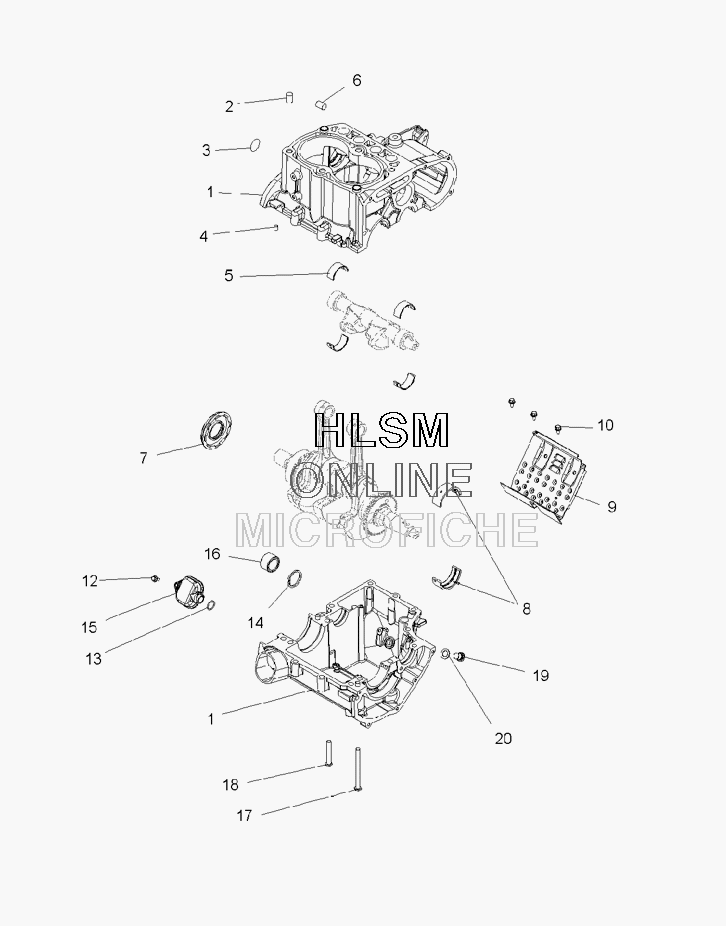

CRANKCASE для Polaris SPORTSMAN 800 EFI HO (A09MN76AZ) (RED/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
12203300 KIT-CRANKCASE ATV 700/800 (INCL. 1-6, 8-20)KIT-CRANKCASE ATV 700/800 (INCL. 1-6, 8-20)
-
27661175 DOWEL-HOL, M16X12, 0600089DOWEL-HOL, M16X12, 0600089
-
37051530 PLUG, EXPANSION, 19MMPLUG, EXPANSION, 19MM
-
47663001 PIN, DOWELPIN, DOWEL
-
55132753 BEARING-JOURNAL BAL SHAFTBEARING-JOURNAL BAL SHAFT
-
67052288 PLUG-EXPANSION, 13MM, 500 PSIPLUG-EXPANSION, 13MM, 500 PSI
-
75412676 SEAL-FLANGE 35X72X7 REPSEAL-FLANGE 35X72X7 REP
-
83585704 BEARING, MAIN JOURNALBEARING, MAIN JOURNAL
-
95211785 PLATE-BAFFLE, CRANKCASEPLATE-BAFFLE, CRANKCASE
-
107518045 SCR-M5X.80X8-HX/FL-Y/DSCR-M5X.80X8-HX/FL-Y/D
-
127516603 BOLT(1)BOLT(1)
-
135812016 SEAL-O-RING, .070X.614SEAL-O-RING, .070X.614
-
147710512 RING-RETAINING, 1 5/8RING-RETAINING, 1 5/8
-
151202663 ASM-OIL PICKUPASM-OIL PICKUP
-
163060004 PLUG, EXPANSION, 48MMPLUG, EXPANSION, 48MM
-
177517792 SCR-M8X1.25X90 HX/FL-YSCR-M8X1.25X90 HX/FL-Y
-
187517793 SCR-M8X1.25X50 HX/FL-YSCR-M8X1.25X50 HX/FL-Y
-
197052306 PLUG-SOCKET, M12X1.5 DIN 908APLUG-SOCKET, M12X1.5 DIN 908A
-
205812232 WASHER-19X12X1.3-COPPERWASHER-19X12X1.3-COPPER
