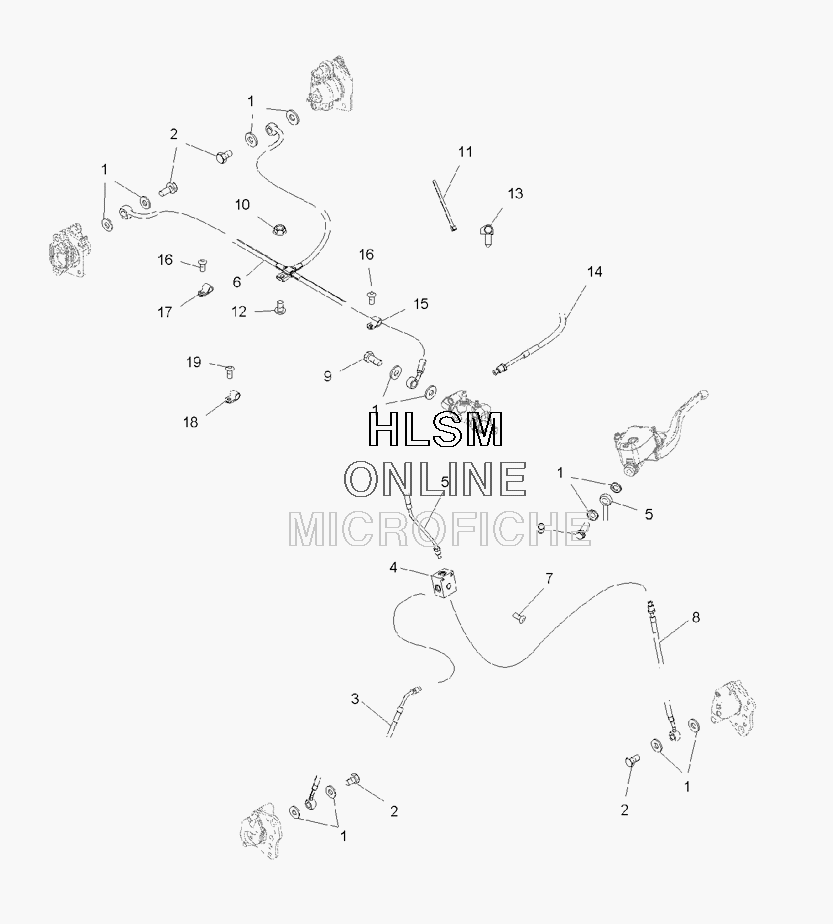

BRAKE LINES для Polaris SPORTSMAN TOURING 500 EFI (A09DN50AZ) (RED) - 2009 года выпуска
-
№АртикулНазвание
-
15413212 SEAL-STAT-O-3/8,70EPSEAL-STAT-O-3/8,70EP
-
21910499 BOLT-BANJO,10MMX1.00BOLT-BANJO,10MMX1.00
-
31910839 LINE-BRAKE,FRONT RIGHT,SSLINE-BRAKE,FRONT RIGHT,SS
-
47052292 FITTING,CROSSFITTING,CROSS
-
51910913 LINE-BRAKE,POD,SS,21.75LINE-BRAKE,POD,SS,21.75
-
61910979 LINE-BRAKE,FT M/C TORRLINE-BRAKE,FT M/C TORR
-
77512024 SCREWSCREW
-
81910838 LINE-BRAKE,FRONT LEFT,SSLINE-BRAKE,FRONT LEFT,SS
-
91910958 BOLT-BANJO, 10MM X 1.25-6GBOLT-BANJO, 10MM X 1.25-6G
-
107542153 NUT,NYLOK,FLANGEDNUT,NYLOK,FLANGED
-
117080138 CABLE TIECABLE TIE
-
127512240 BOLTBOLT
-
137670102 CLIPCLIP
-
141910980 LINE-BRAKE, JB TO FT, M/CLINE-BRAKE, JB TO FT, M/C
-
157080573 CLAMP,RUBBER-COATED,.562CLAMP,RUBBER-COATED,.562
-
167512084 SCREWSCREW
-
177080683 CLAMP,HOSECLAMP,HOSE
-
187080880 CLAMP-HOSE,.625 DIA VNL COATEDCLAMP-HOSE,.625 DIA VNL COATED
-
197518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
