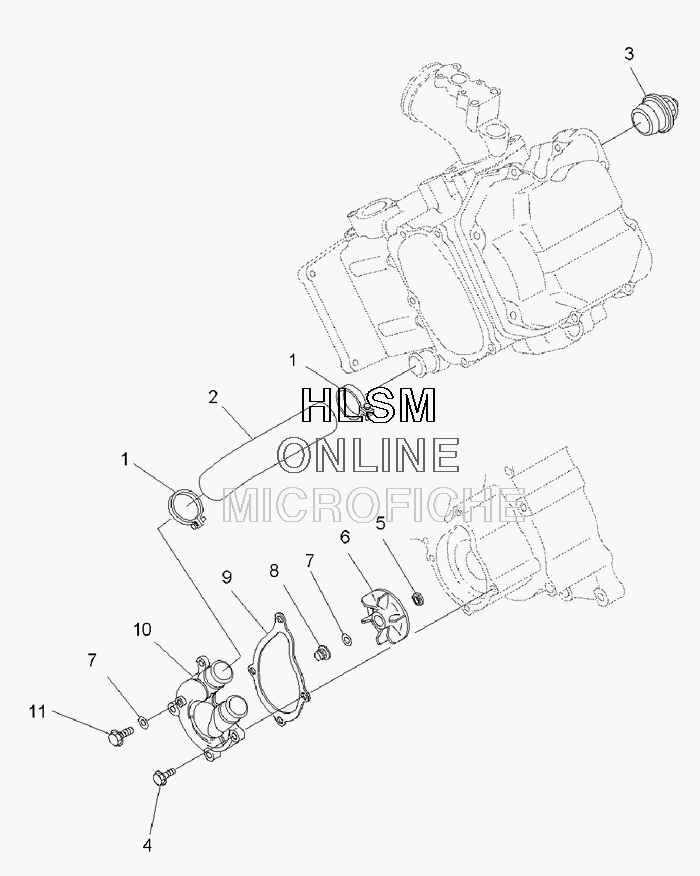

WATER PUMP для Polaris SPORTSMAN X2 500 EFI (A09TN50AX) (GREEN/BLACK) - 2009 года выпуска
-
№АртикулНазвание
-
13086774 CLAMP-HOSECLAMP-HOSE
-
23085857 HOSE, MAINHOSE, MAIN
-
33084940 THERMOSTATTHERMOSTAT
-
43084877 BOLT, FLANGEBOLT, FLANGE
-
53084942 WASHER, SEALWASHER, SEAL
-
63084935 IMPELLERIMPELLER
-
77555998 WASHER, FLATWASHER, FLAT
-
83085077 NUT, SELF-LOCKNUT, SELF-LOCK
-
93086840 GASKET, WATER-PUMPGASKET, WATER-PUMP
-
103085351 COVER, WATER PUMPCOVER, WATER PUMP
-
113085359 BOLT, FLANGEBOLT, FLANGE
