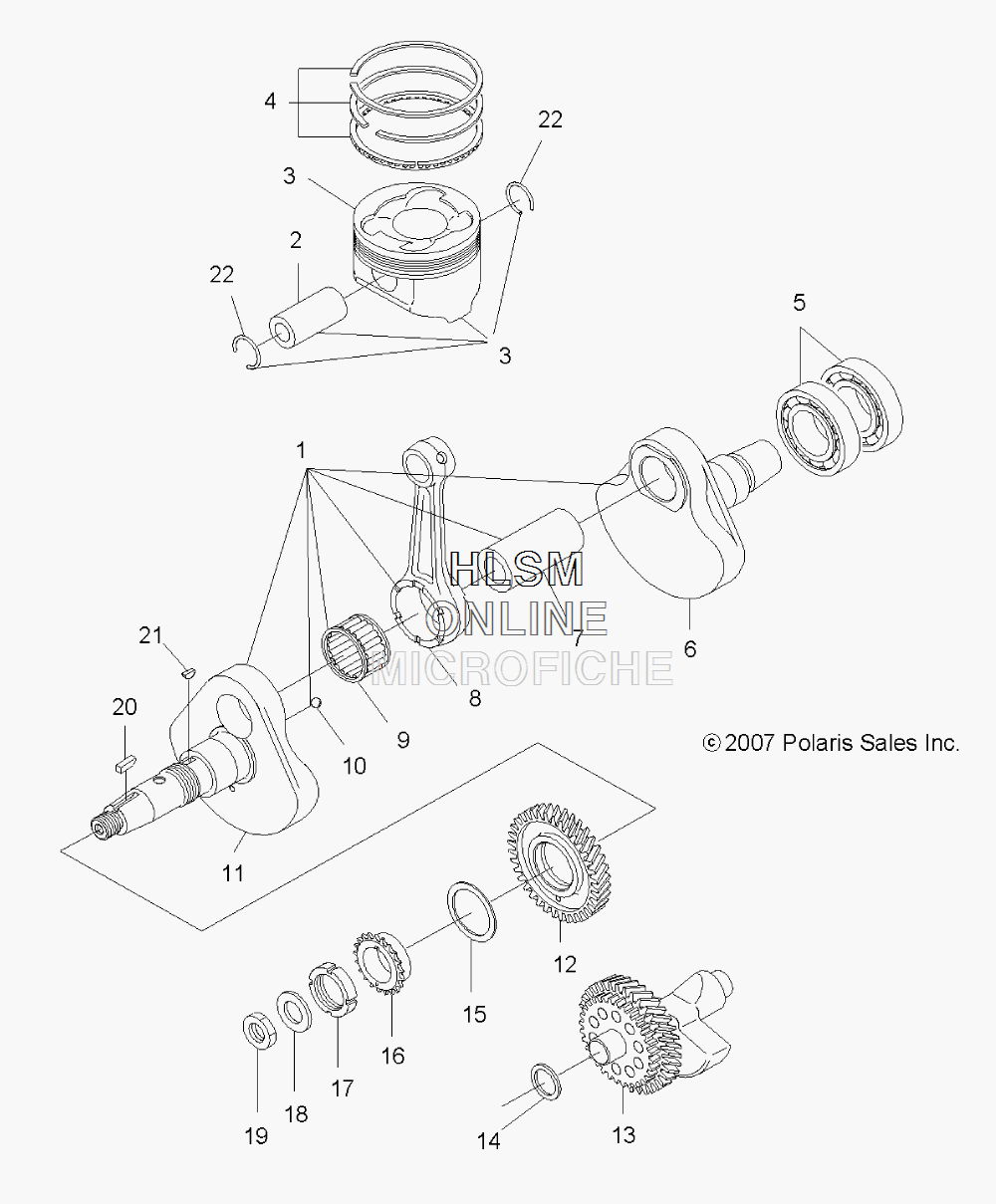

CRANKSHAFT W/ CYLINDER для Polaris SPORTSMAN X2 500 EFI QUAD (A09TN50EA) (SAGEBRUSH GREEN METALLIC) - 2009 года выпуска
-
№АртикулНазвание
-
13089570 ASM., CRANKSHAFT (INCL. 6-12)ASM., CRANKSHAFT (INCL. 6-12)
-
33087221 SET, PISTON, STANDARD (INCL. 2,22)SET, PISTON, STANDARD (INCL. 2,22)
-
33087222 SET, PISTON, .010 INCH/.25MM O/S (INCL. 2,22)SET, PISTON, .010 INCH/.25MM O/S (INCL. 2,22)
-
33087223 SET, PISTON, .020 INCH/.50MM O/S (INCL. 2,22)SET, PISTON, .020 INCH/.50MM O/S (INCL. 2,22)
-
43087224 SET, PISTON, RING, STANDARDSET, PISTON, RING, STANDARD
-
43087225 SET, PISTON, RING, .010 INCH/.25MM O/SSET, PISTON, RING, .010 INCH/.25MM O/S
-
43087226 SET, PISTON, RING, .020 INCH/.50MM O/SSET, PISTON, RING, .020 INCH/.50MM O/S
-
53085815 BEARING, BALLBEARING, BALL
-
63085812 CRANKSHAFT 2CRANKSHAFT 2
-
73087090 PIN, CRANKPIN, CRANK
-
83085813 ROD, CONNECTINGROD, CONNECTING
-
93085343 BEARING, LARGE ENDBEARING, LARGE END
-
103085024 BALL, STEELBALL, STEEL
-
113089678 CRANKSHAFT 1CRANKSHAFT 1
-
123089245 BALANCE, GEAR 1BALANCE, GEAR 1
-
133090031 SHAFT, BALANCERSHAFT, BALANCER
-
143084895 SPACER, 0.8SPACER, 0.8
-
143084896 SPACER, 1.0SPACER, 1.0
-
143084897 SPACER, 1.2SPACER, 1.2
-
153240088 SPACER, 0.6SPACER, 0.6
-
153084892 SPACER, 0.8SPACER, 0.8
-
153084893 SPACER, 1.0SPACER, 1.0
-
153084894 SPACER, 1.2SPACER, 1.2
-
163084882 SPROCKET 1SPROCKET 1
-
173085528 NUT, SLITNUT, SLIT
-
183086767 WASHERWASHER
-
193083905 NUT, LOCKNUT, LOCK
-
203081447 KEYKEY
-
213240168 KEY, WOODRUFFKEY, WOODRUFF
-
223085534 CLIPCLIP
